JT-8288 0-15m UHF RFID 860-960MHz Long Range Integrated Reader
JTSPEEDWORK JT-8288 UHF RFID reader boasts 0-15m range, 10dBi antenna & ISO18000-6C support. With 6000V lightning protection, multi-modes/interfaces, it suits vehicle, access control and logistics management.
Item No :
JT-8288Color :
WhiteAntenna gain :
10dBi LinearCommunication Interface :
RS232,RS485,Wiegand(standard),TCP/IP(optional)Protocol :
ISO18000-6CWorking frequency :
EU:865-868 | US:902-928MHz| Item No. | JT-8288 | |||
| Physical parameters | Antenna | |||

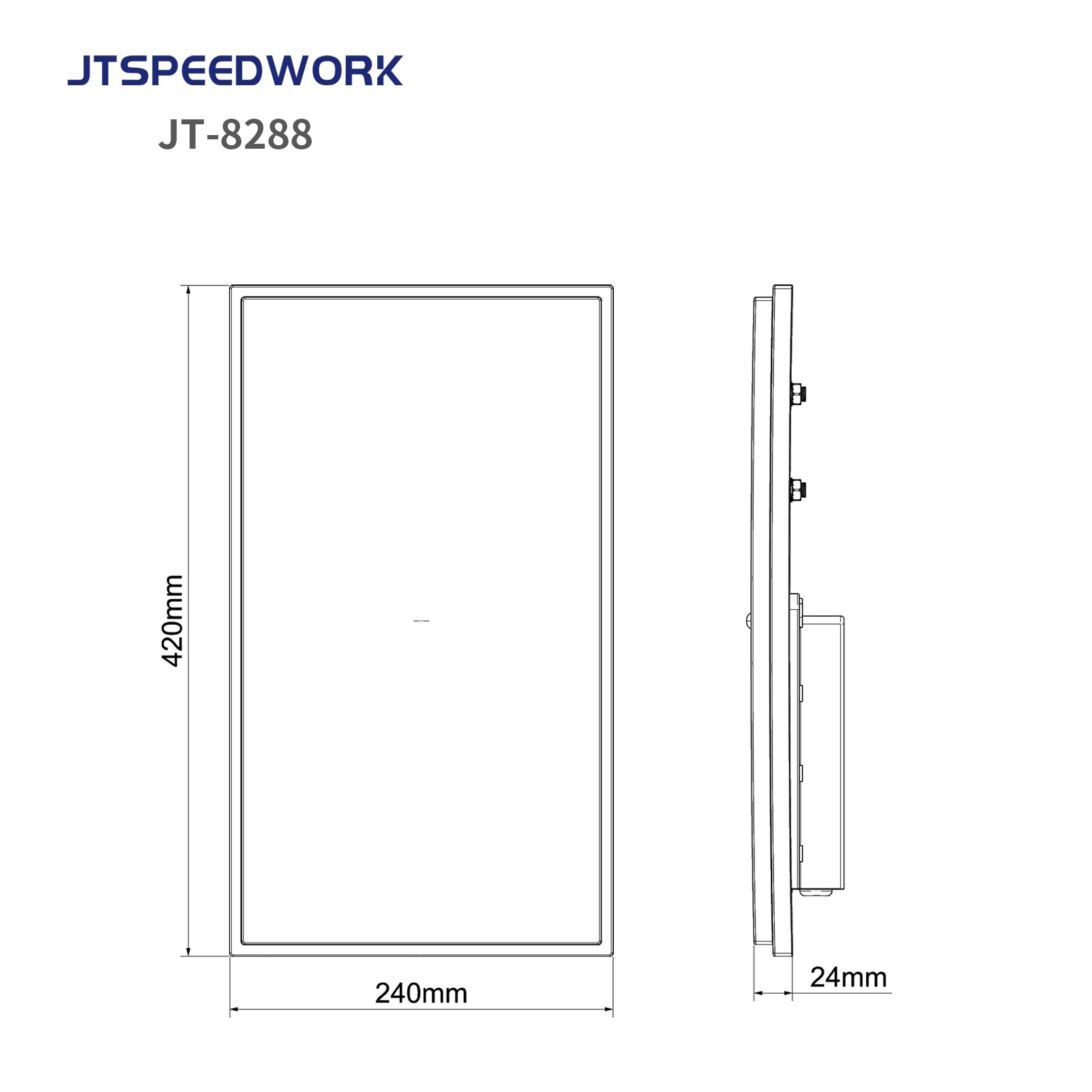

| Dimensions | 420(L)*240(W)*50(H)mm | 10dBi linear polarized antenna (built-in) | ||
| Net weight | 2.8kg | |||
| Material | ABS & aluminum alloy | |||
| RFID parameters | Power Supply | |||
| Air Protocol | Power adapter |
DC12-24V/3A
|
||
|
ISO18000-6C/EPC C1 Gen2
|
||||
| Working frequency | User Environment | |||
| EU:865-868 | US:902-928MHz (custom-design for frequency band) | Operating Temp. | -40 ℃ to 75 ℃ | ||
| Work mode | Storage Temp. | -45 ℃ to 80℃ | ||
| Master-slave, timing,trigger mode | Humidity | 5-90% non-condensing (+25° C ) | ||
| RF power | ||||
| 0-30dBm (adjustable) | Reading Performance | |||
| Baud rate | Reading distance | |||
| 115200 bps (default) | Up to 15m(relate to tag and environment) | |||
| GPIO | Model Type | |||
| 1 trigger input or 2 relay outputs (customized) | JT-8288A |
RS232,RS485,Wiegand
|
||
| Special | JT-8288B |
RS232,TCP/IP,Wiegand
|
||
| Warming function in extremely cold regions |
|
|||
| Industrial lightning protection | ||||
| 6000V high voltage lightning protection | ||||
| Notification | SDK | |||
| LED indicator,buzzer | C# , Java , C++ | |||
