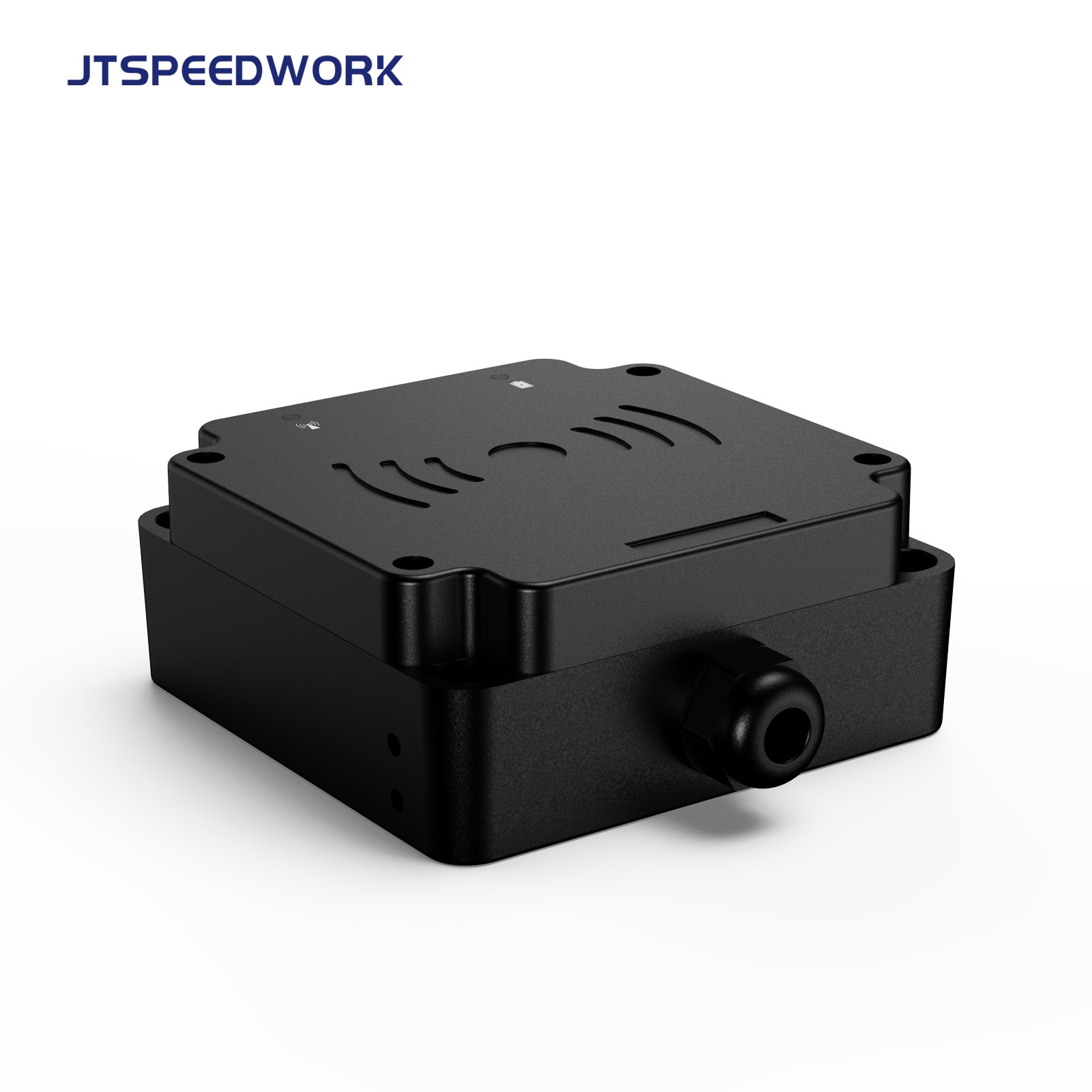

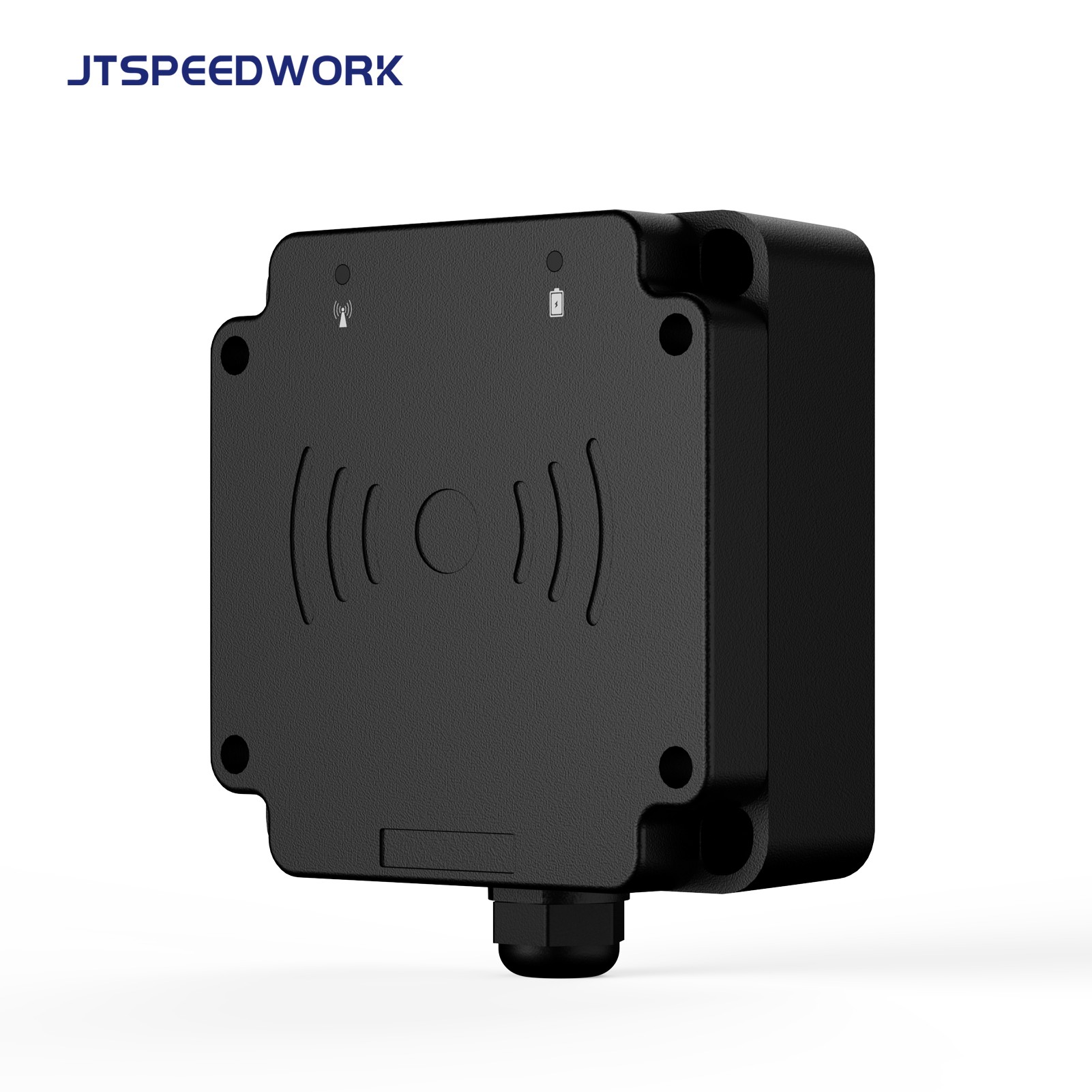

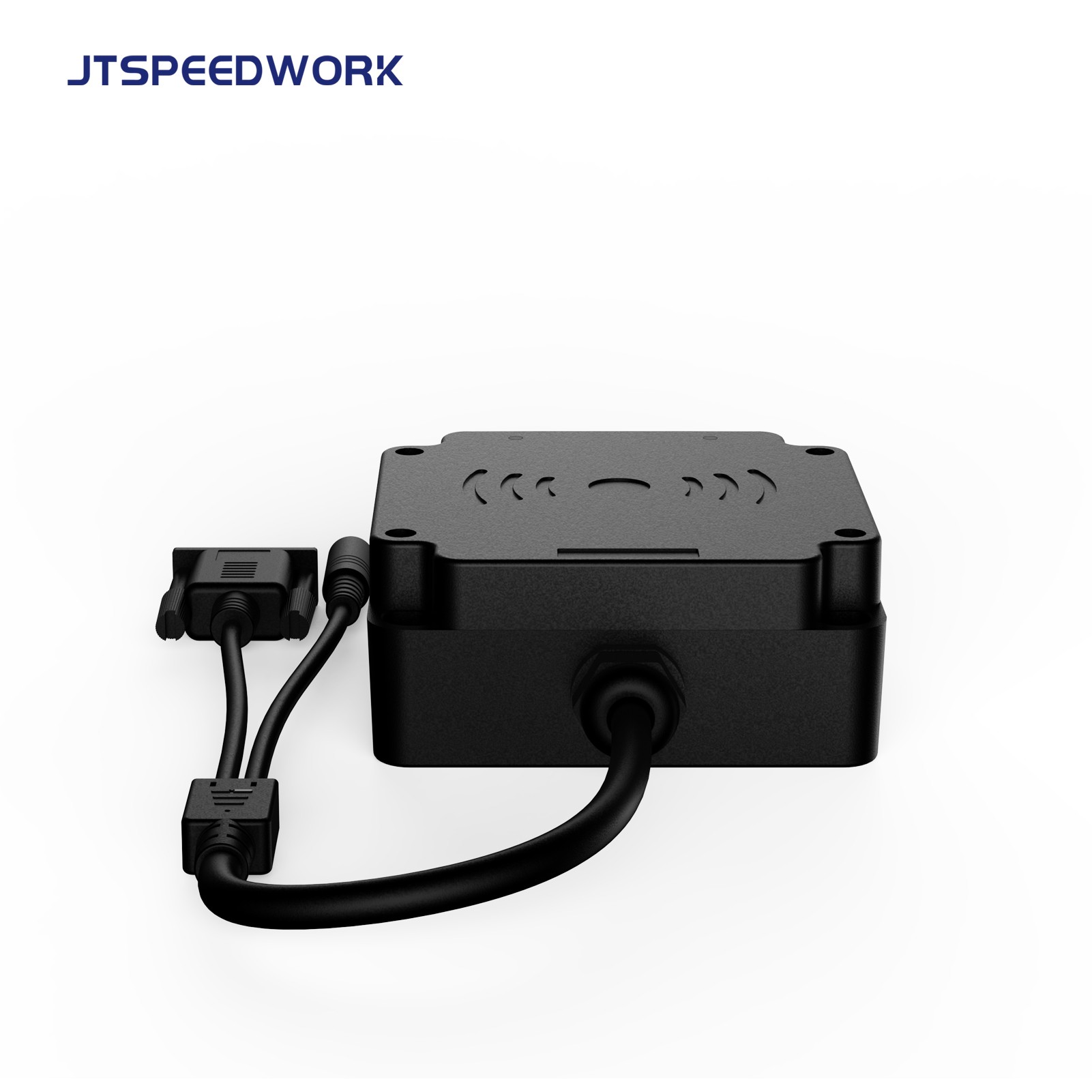

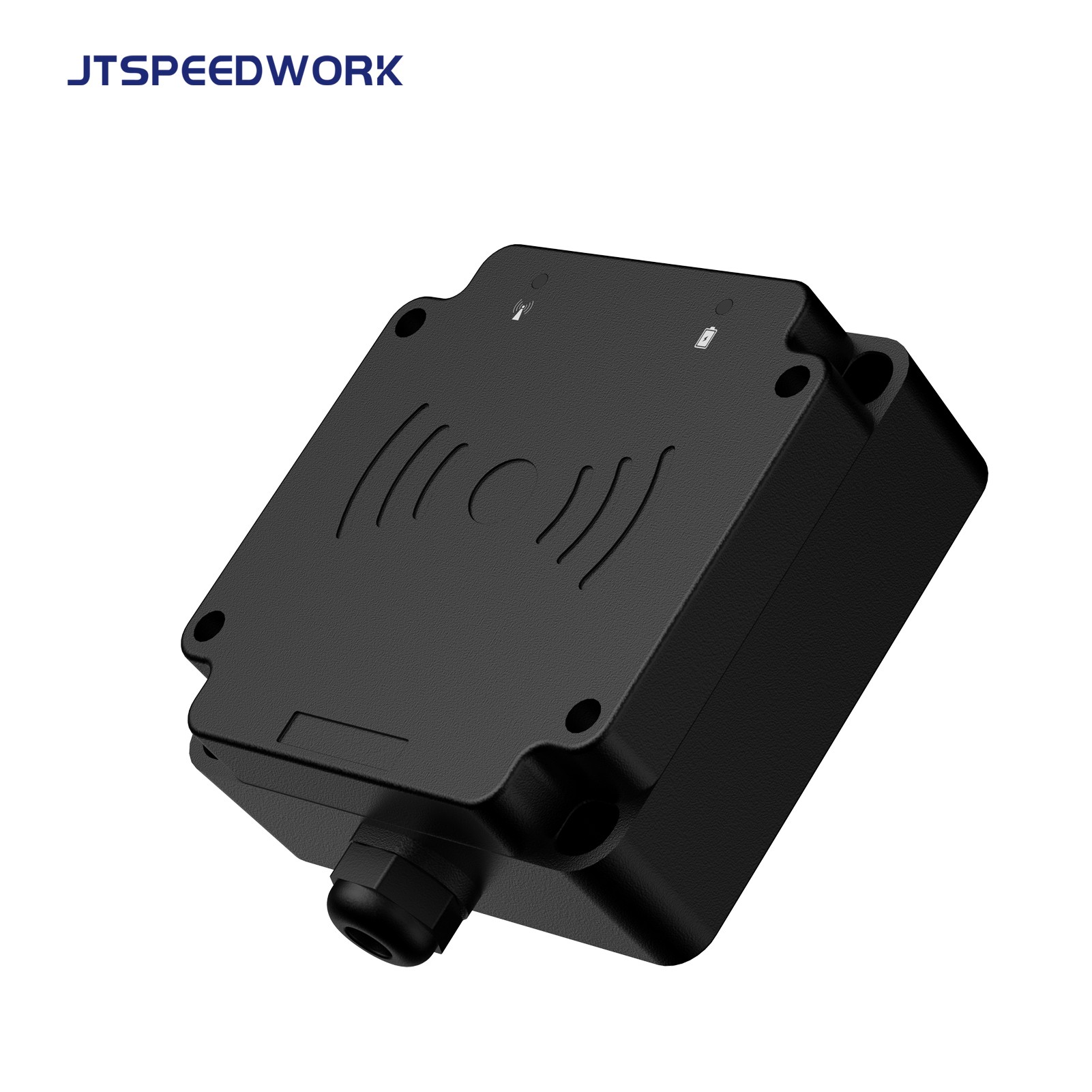

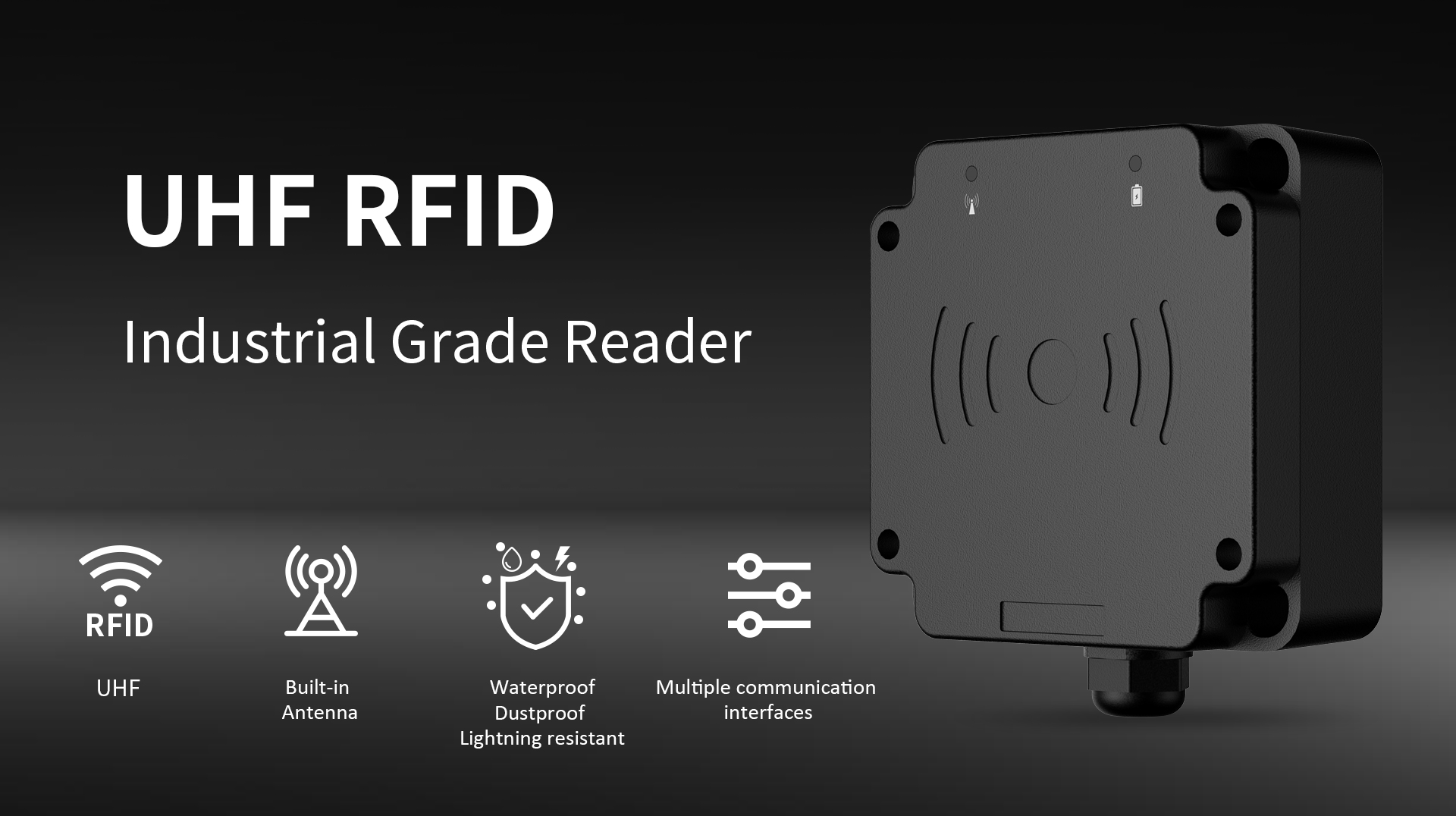

JT-7100 0-3m 860-960MHz UHF RFID Industrial Grade RFID Reader
The JT-7100 is a high-performance industrial UHF RFID reader by JTSPEEDWORK, with IP65/IP67 protection and stable operation from -30°C to 75°C.
Item No :
JT-7100Color :
Dark GreyAntenna gain :
3dBiCommunication Interface :
RS485+TCP/IP(standard),RS232 | MODBUS TCP/IP | MODBUS RTU | CAN BUS 2.0(optional)Protocol :
ISO18000-6CWorking frequency :
865-868MHz(EU),902-928MHz(US)RF chip :
TM200
| Item No. | JT-7100 | |||
| Physical parameters | Antenna | |||

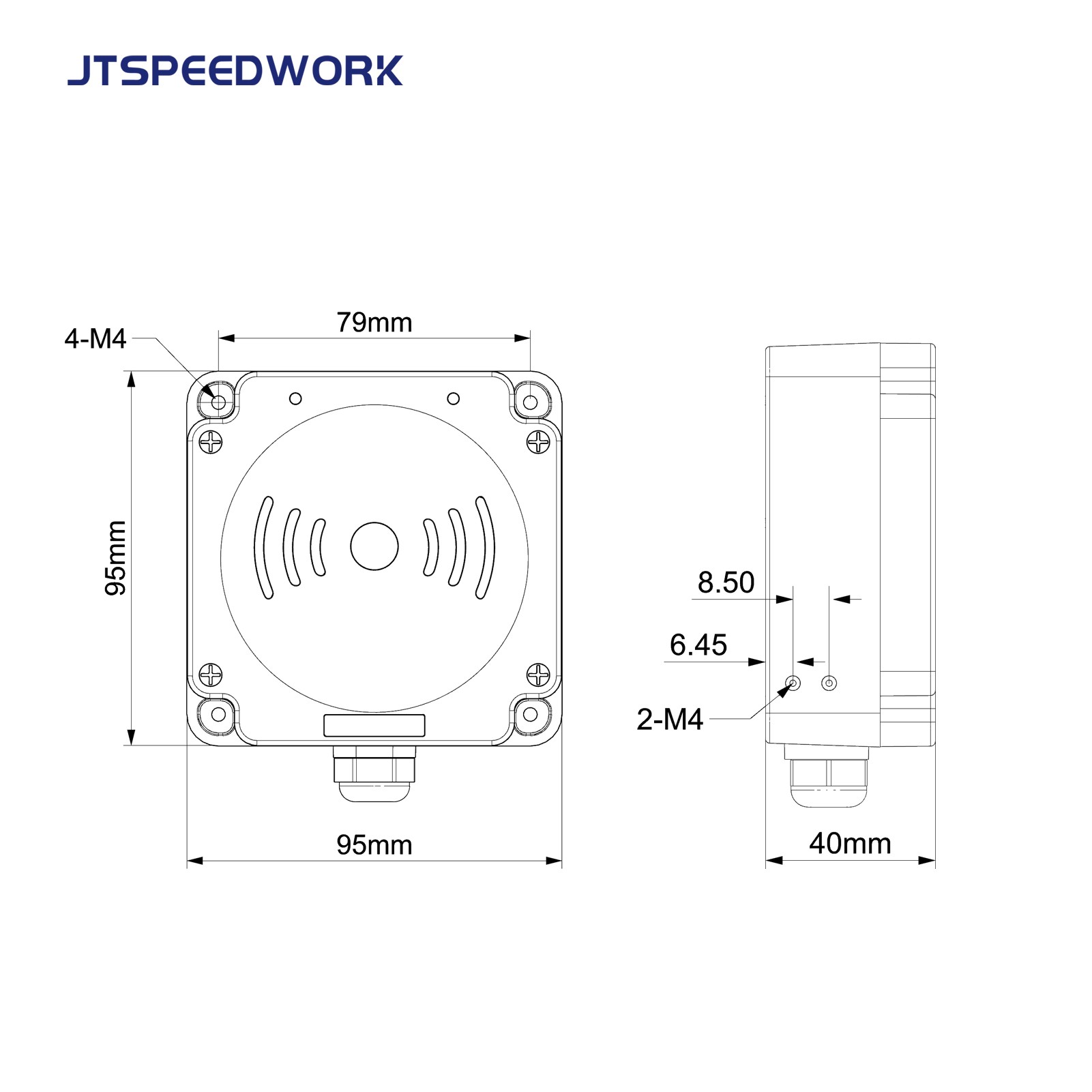

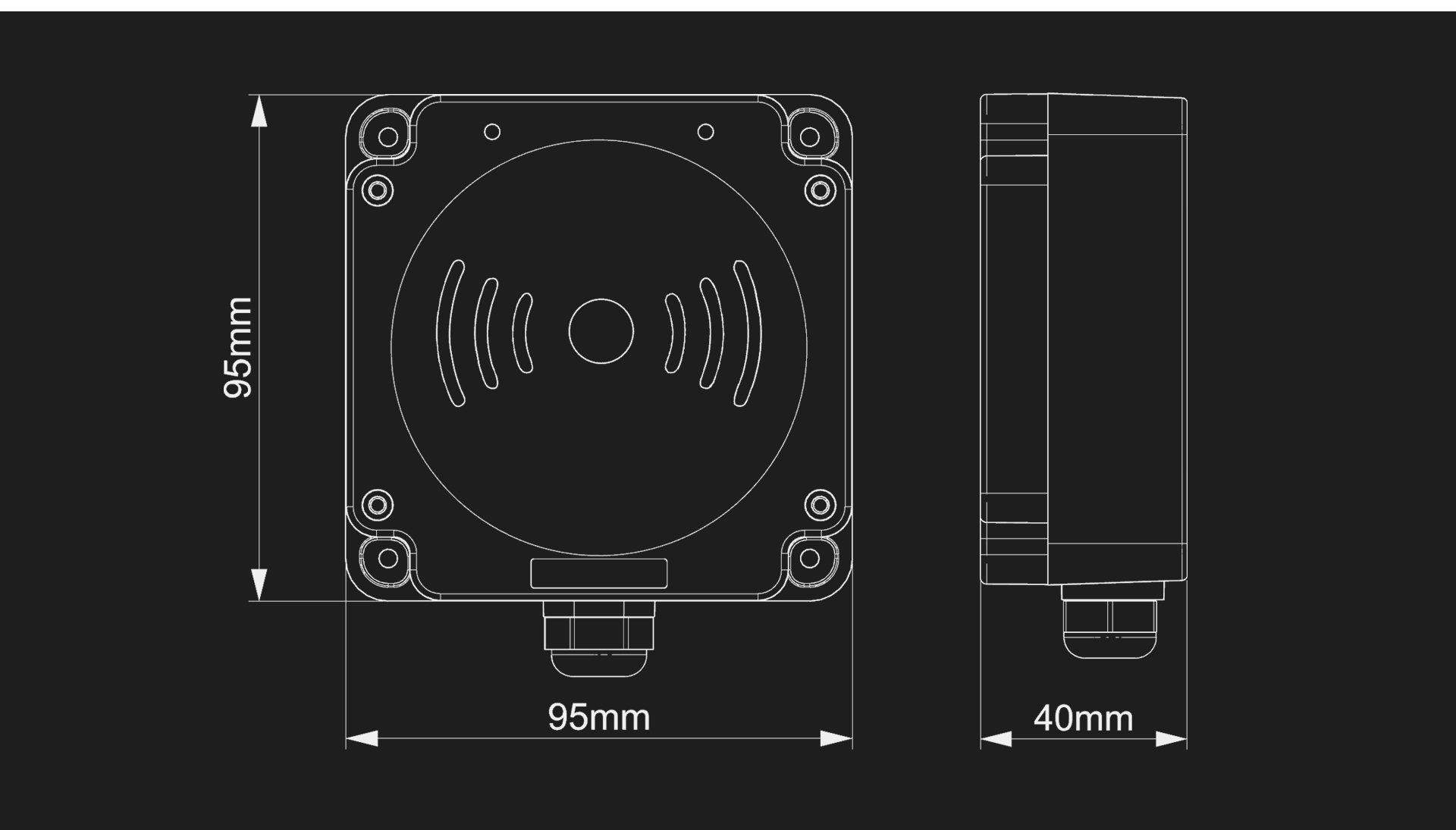

| Dimensions | 95(L)*95 (W)*40(H)mm | 3dBi circularly polarized antenna (built-in) | ||
| Net weight | 320g | |||
| Material | ABS | Power Supply | ||

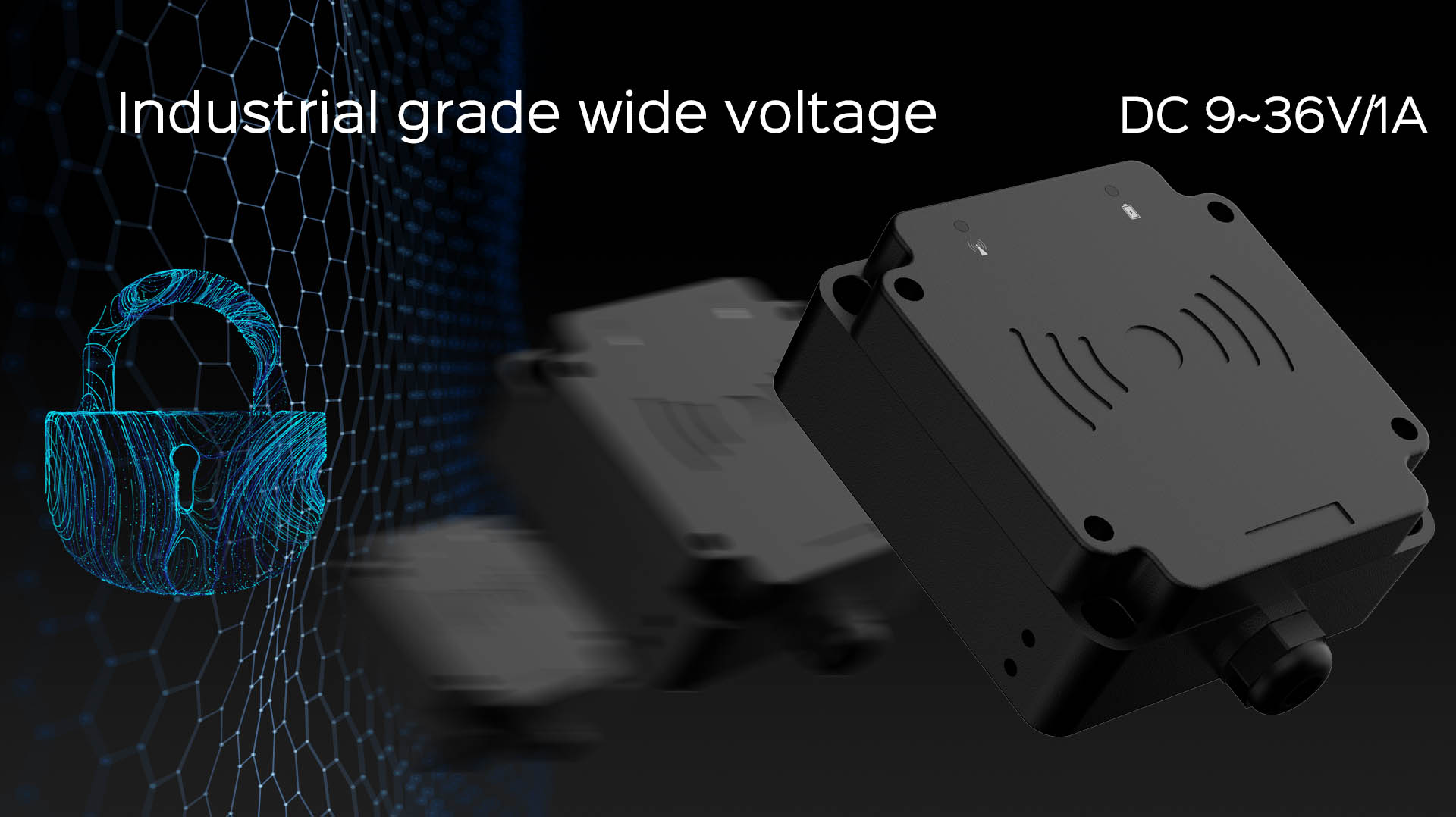

| Power supply | DC 9~36V/1A;Industrial grade wide voltage | |||
| RFID parameters | ||||
| Air Protocol | User Environment | |||
| EPC global Gen2(ISO18000-6C) | Operating Temp. | -30 ℃ to 75 ℃ | ||
| Working frequency | Storage Temp. | -40 ℃ to 80℃ | ||
| 865-868 / 902-928 MHz ( custom-design for frequency band ) | Humidity | 5-90% non-condensing (+25° C ) | ||
| RFID chip | ||||
| TM200 | Reading Performance | |||
| RF power | Reading distance | |||
| 13~33dBm (adjustable) | Up to 3m(relate to tag and environment) | |||
| Reading rate | ||||
| >700 times/sec | Model Type | |||
| Notification | JT-7100A | RS232,RS485,TCP/IP | ||
| LED indicator,buzzer | JT-7100B | RS485,TCP/IP(standard) | ||
| Work mode | JT-M7100B | MODBUS TCP/IP | ||
| Master-slave,timing,trigger mode | JT-M7100C | RS485 MODBUS RTU | ||
| Industrial lightning protection | JT-C7100 | CAN BUS 2.0 | ||
| 6000V high voltage lightning protection | ||||
| I/O | ||||
| 1 trigger input or 2 relay outputs (customized) | ||||
| SDK Language | ||||
| C# , Java , C++ | ||||
