UHF RFID Reader

Name: JT-9288 0-15m UHF RFID Integrated Reader Multi-tags Reading
Availability: InStock

Home UHF RFID 860-960MHz UHF RFID Reader

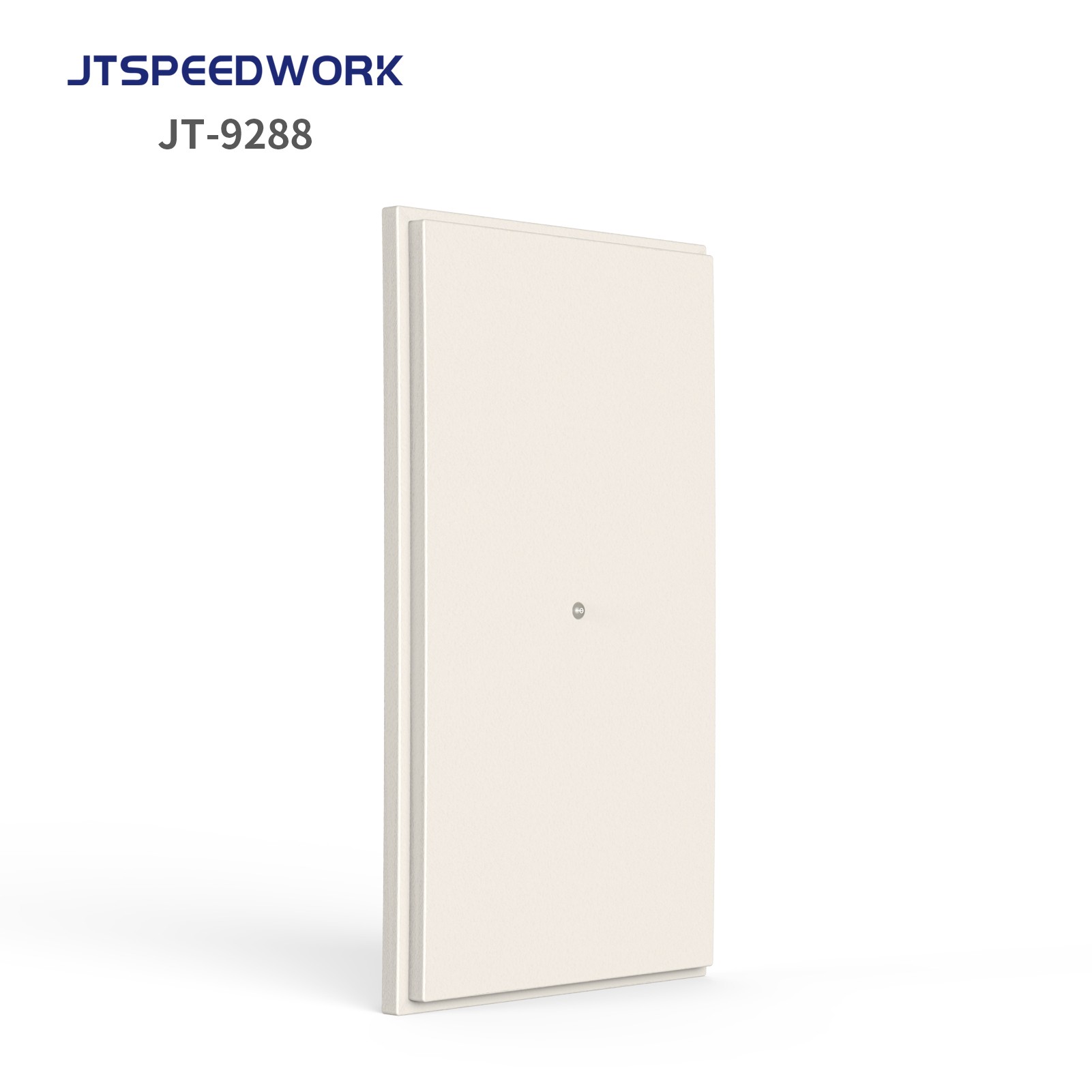

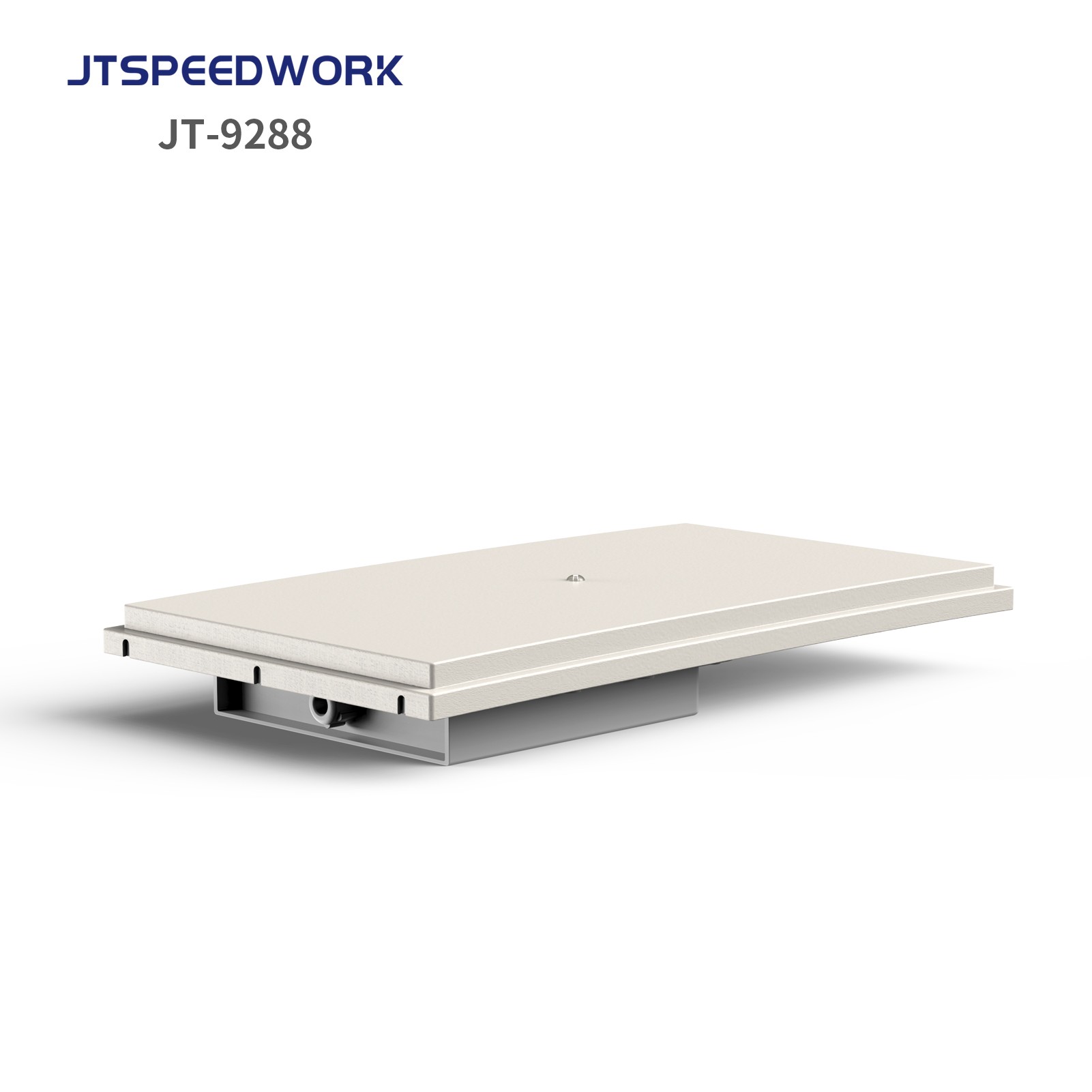

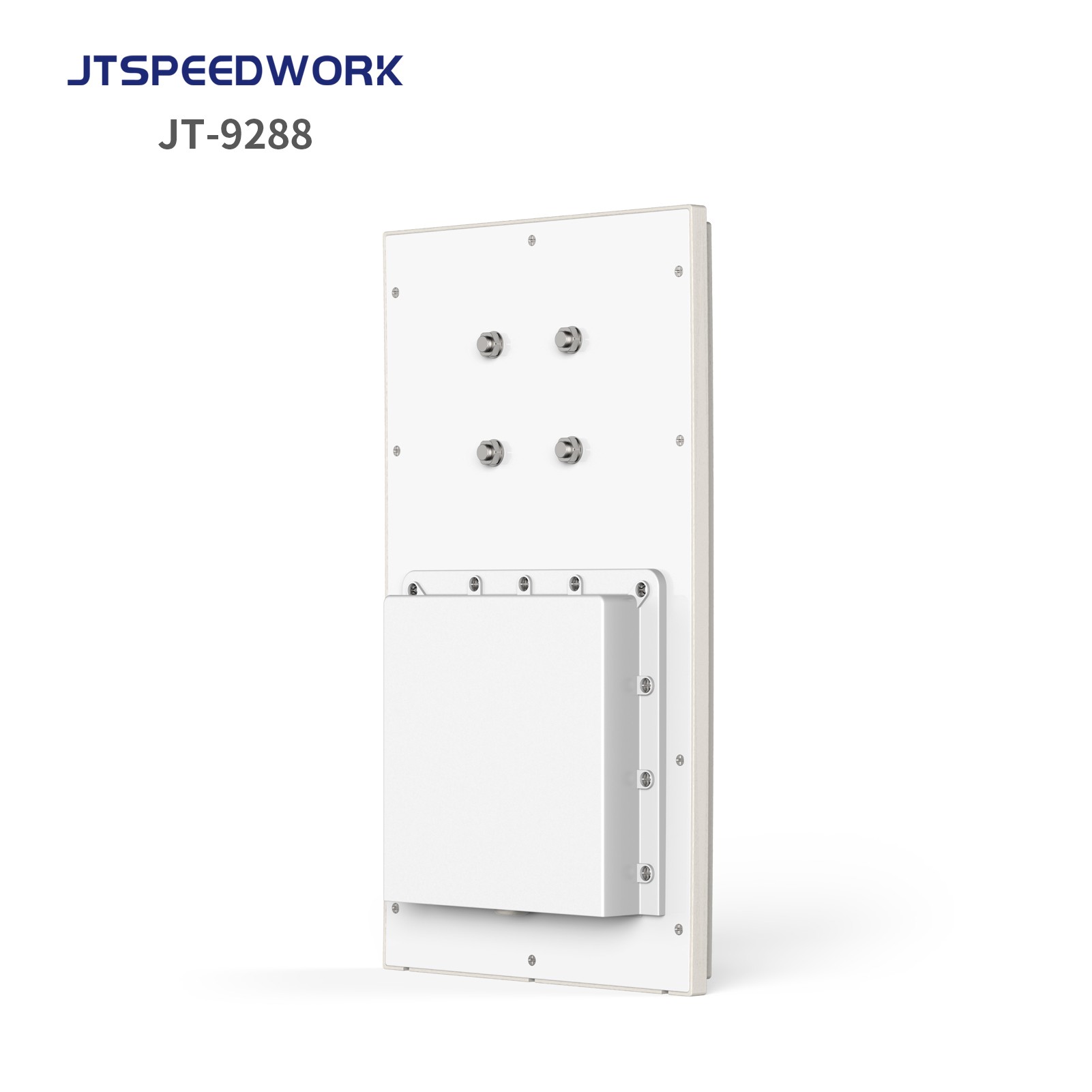

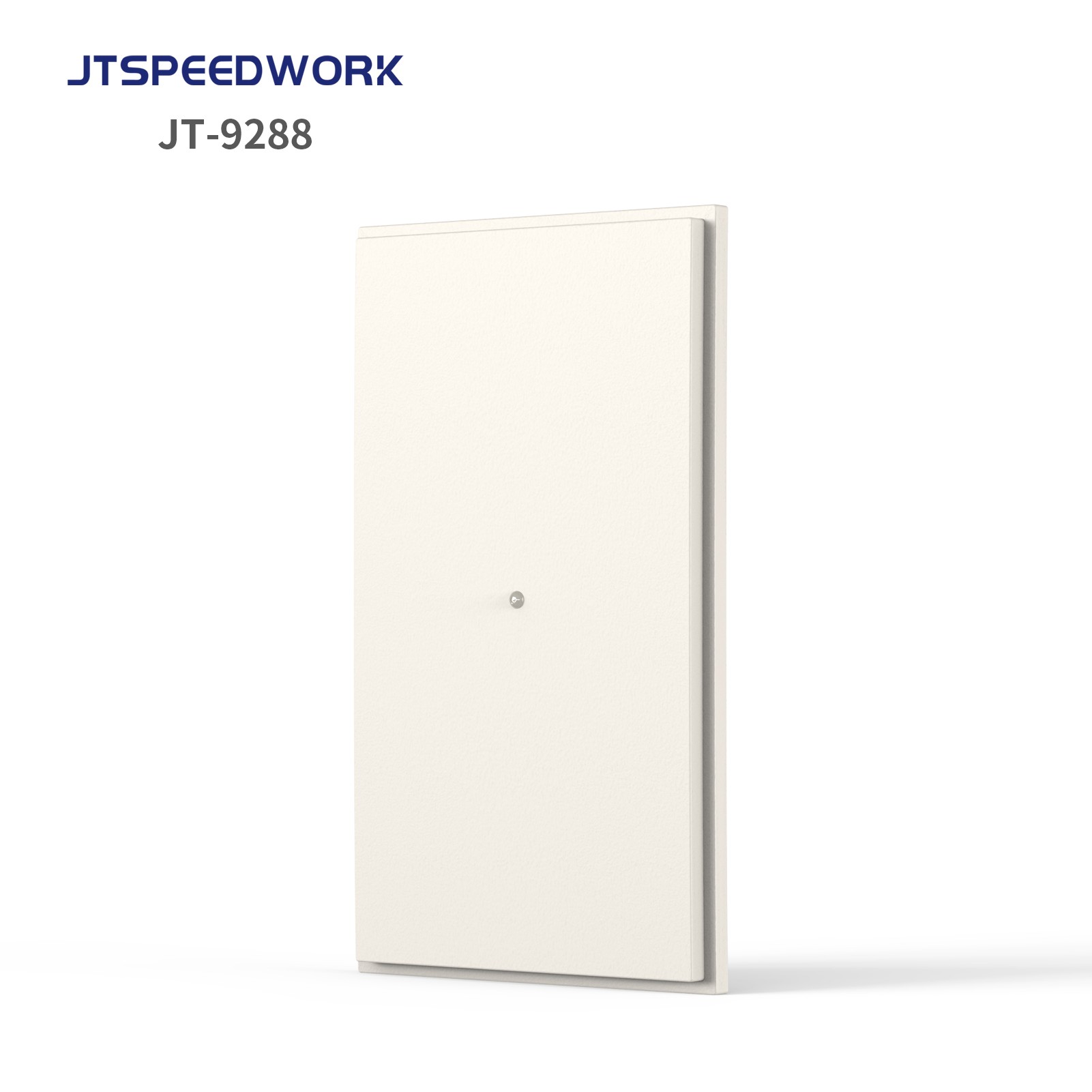

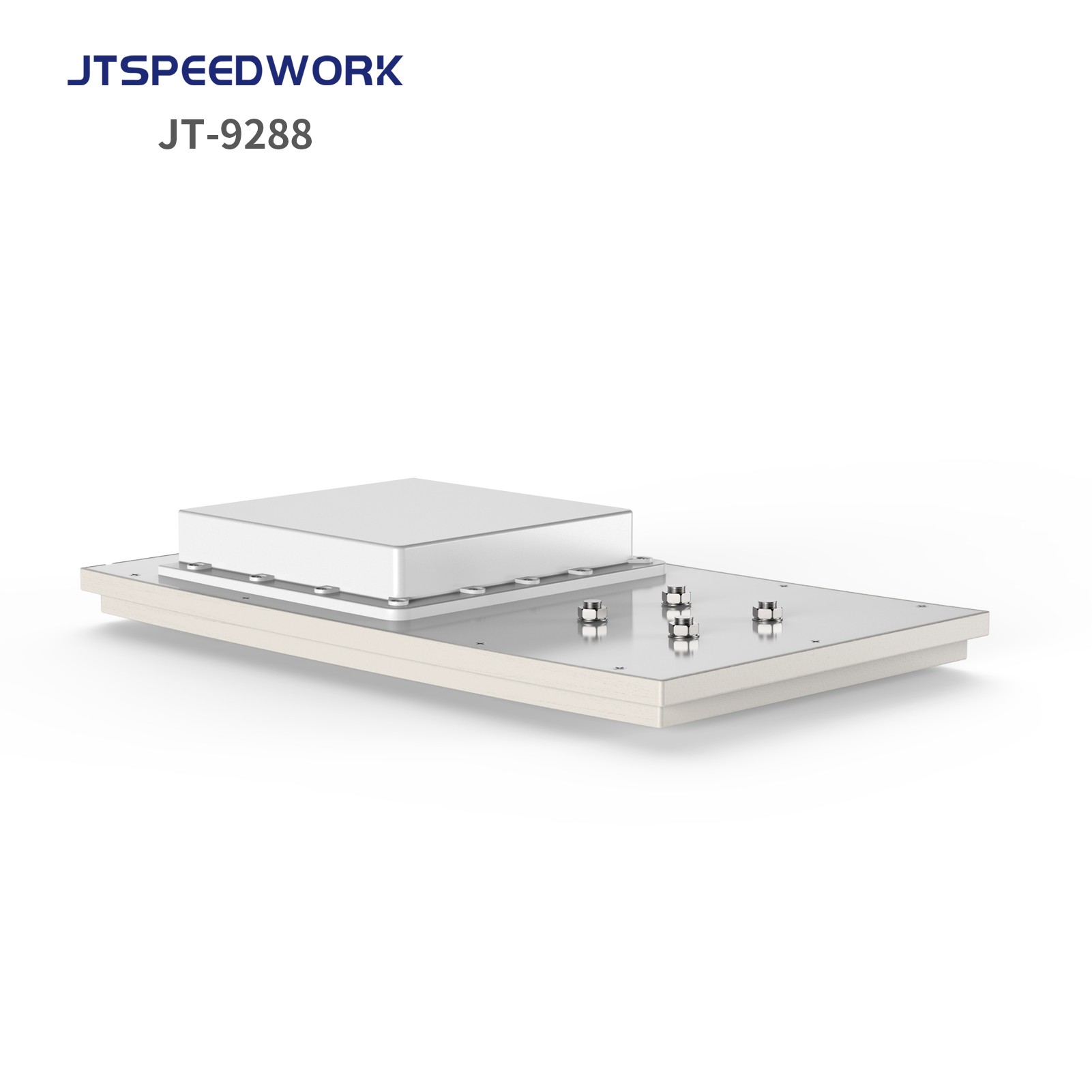

JT-9288 0-15m UHF RFID Integrated Reader Multi-tags Reading

JTSPEEDWORK JT-9288 UHF RFID reader adopts TM200/Impinj E710 chip, supports ISO18000-6C and 0-15m reading range. With 10dBi antenna, multi-modes & RS232/TCP/IP/WiFi, it works in -40℃~75℃ for logistics, access control etc.

Item No :
JT-9288
Color :
White
Antenna gain :
10dBi Linear
Communication Interface :
RS232,TCP/IP(standard),RS485,Wiegand,WiFi(optional)
Protocol :
ISO18000-6C
Working frequency :
US:902-928 MHz | EU:865-868 MHz
RF chip :
TM200(standard) | Impinj E710(optional)

Inquire Now

Download

Item No.	JT-9288
Physical parameters		Antenna
Dimensions	420(L)240(W)50(H)mm	10dBi linear polarized antenna (built-in)
Net weight	1.3kg
Material	ABS & aluminum alloy	Power Supply
		Operate voltage	9-36V
RFID parameters		Operate current	0.65A@30dBm,25° C \| 1.3A@30dBm,25° C
Air Protocol		Power adapter	DC 12V/3A
EPC global Gen2(ISO18000-6C)
Working frequency		User Environment
US:902-928 MHz \| EU:865-868 MHz		Operating Temp.	-40 ℃ to 75 ℃
RFID chip		Storage Temp.	-45 ℃ to 80℃
TM200(standard) \| Impinj E710 chip(optional)		Humidity	5-90% non-condensing (+25° C )
RF power
13-33dBm(adjustable) \| 0-33dBm(adjustable)		Reading Performance
Reading rate		Reading distance
>700 times/sec \| >900 times/sec		Up to 15m(relate to tag and environment)
RSSI		Model Type
Support		JT-9288B	RS232,TCP/IP (PoE optional)
Work mode		JT-9288W	RS232,TCP/IP,WiFi
Master-slave, timing,trigger mode
Consumption		Datasheet
Average power consumption<9W
Notification		SDK
LED indicator,buzzer		Demo&C++,C#,JAVA,Android SDK
