RFID Vehicle Management: From Manual to Automated Flow.

With vehicle-level RFID tracking, gain real-time visibility and seamless control. Automate access verification, reduce operational delays, and manage fleet security with transformational precision.

Technical Principles

RFID (Radio Frequency Identification) parking systems utilize wireless radio frequency identification to enable non-contact data communication via electromagnetic fields.

The core workflow includes:

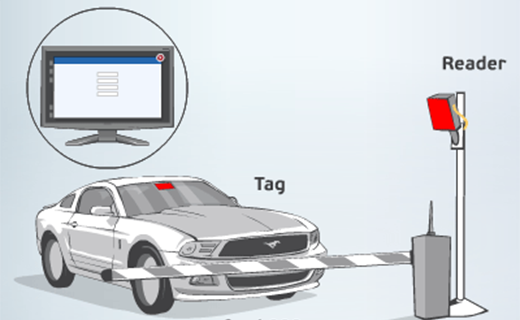

1. Tag Identification: Each vehicle is equipped with a passive/active RFID tag containing a unique EPC (Electronic Product Code) code.

2. RF Interaction: RFID readers at entry/exit points emit electromagnetic waves (e.g., 860–960 MHz UHF band) to power and activate the tags.

3. Data Transmission: Tags backscatter modulated signals to transmit vehicle ID data, achieving a read range of 3–12 meters.

4. Dynamic Verification: The backend system validates permissions in real-time against a database and triggers gate control signals.

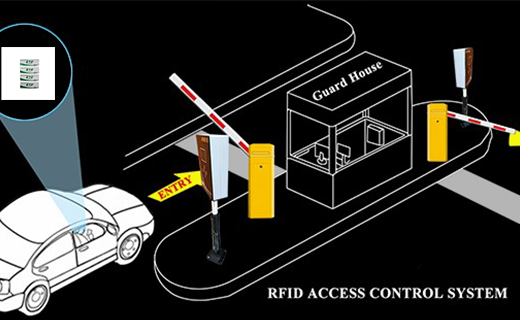

Hardware Architecture

Core Components

Device	Specifications	Function
UHF RFID Tag	Frequency: 902–928 MHz	Stores encrypted vehicle ID
Multi-channel Reader	EPC Gen2 compliant, 4 antennas	Achieves >99.5% read accuracy
Directional Antenna	8dBi gain, 70° beamwidth	Focused signal coverage
Smart Barrier Gate	Response time ≤1.5 seconds	Integrates with license plate recognition
Induction Loop	Adjustable sensitivity	Triggers reader activation

Hardware Architecture Core Components Table

Middleware Platform

Multi-protocol support: Compatible with ISO 18000-6C, EPCglobal standards.
Data filtering: Sliding window algorithm eliminates duplicate reads.
Event logging: Flags anomalies (e.g., unauthorized access).

Management System

Dynamic billing: Supports time-based, subscription, and pay-per-use models.
Parking guidance: Real-time slot updates via LoRaWAN/IoT networks.
Analytics dashboard: Tracks occupancy rates, turnover efficiency, etc.

Security Protocols

AES-128 encrypted communication.
Dual authentication (RFID + license plate recognition).
Real-time blacklist/whitelist updates.

How JTSPEEDWORK Enables RFID Parking Management

Operational Efficiency

Throughput: ≤3 seconds per vehicle (4x faster than manual systems).

Supports hands-free access at speeds up to 60 km/h.

Management Enhancements

Automated recognition of registered vehicles.

Granular traffic analytics for peak-hour optimization.

Cost Savings

Reduces labor costs by >60%.

Hardware durability: 10-year lifespan (tags support 100,000 rewrites).

The JTSPEEDWORK IoT Platform.

The JT platform lays a foundation for IoT solutions development, extending the internet's reach from the cloud, through edge connectivity devices, all the way to physical items. Our broad partner ecosystem uses our platform's best-in-market products, capabilities, and technology to deliver whole products that address business needs.

Discover the JTSPEEDWORK Platform

Use Cases

Commercial complexes: VIP vehicle prioritization and guidance. Corporate campuses: Frictionless access for employees. Municipal parking: integration with ETC (Electronic Toll Collection) systems.
