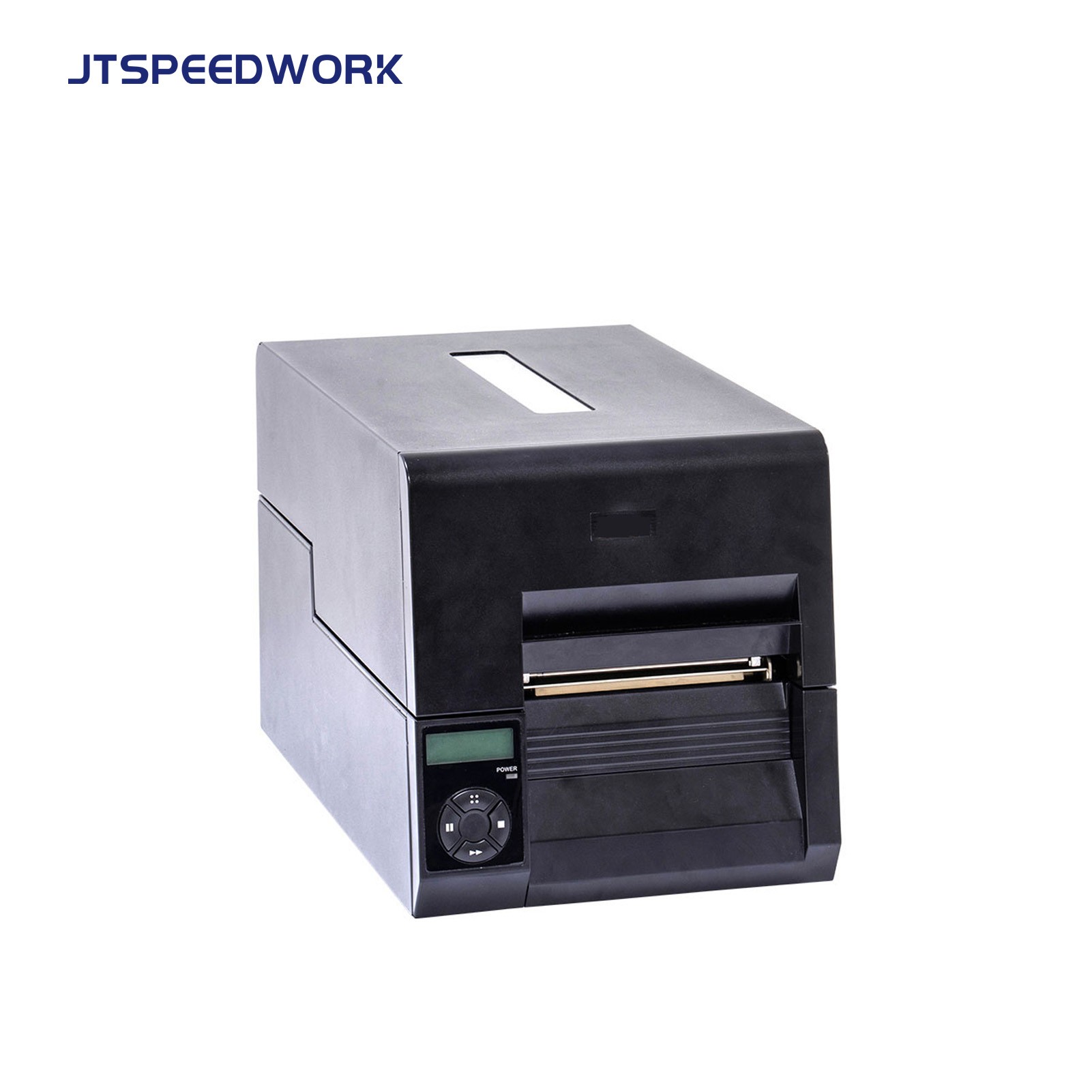

Item No :
JT-P721Color :
Black| Item No. | JT-P721 | |||
| Print Parameter | Physical Spec. | |||
| Print method | Direct thermal/Thermal transfer printing | Dimensions | 240(W)×440(D)×255(H) mm | |
| Print width | Max. 108mm | Casing Color | Black | |
| Print speed | Max. 8 ips(203dpi) | Weight | 9.8kg | |
| Print head | Dot pitch:0.125mm | Operating condition | 0~45℃ 20%~95%RH (non-condensing) | |
| Resolution | 300DPIx300DPI | Storage condition | -20~60℃/≤95%RH(non-condensing) | |
| Barcodes | RFID | |||
| 1D | ZPL: Code11;Interleaved 2 of 5;Code 39;Code 49; Planet Code;EAN-8;EAN-13;UPC-E;UPC-A;Code 93;Code 128; Industrial 2 of 5;Standard 2 of 5;Codabar;MSI; Plessey EPL: EAN-8;EAN-13;UPC-E;UPC-A;Code 39;Code 93; Code 128;Interleaved 2 of 5 |
RFID tag writing method | Print first and then write, which can support printing and writing to EPC at the same time, only reading and writing EPC, printing only, and reading label TID, etc. | |
| 2D | ZPL: PDF417;CODABLOCK;Maxicode;Aztec;QR Code;Data Matrix;EPL: PDF417;Maxicode;QR Code; Data Matrix; |
Support RFID standards | 920.5-924.5MHz; support ISO18000-6C, EPC Gen2 | |
| Supported label types | Supports ordinary self-adhesive RFID and flexible anti-metal tags below 1.25mm *Special tags depend on the specific chip | |||
| Control Panel | Interface | |||
| Key | Four keys: Feed, Return, Pause, Cancel | Standard | USB(2.0 Full-Speed) | |
| LED indicator | OneLED: Power | Ethernet: 10M/100M | ||
| Screen | LCD | Optional | Parallel Centronics (IEEE-1284) | |
| Detect Function | Memory | |||
| Standard sensors |
Black mark sensor, Media sensor, Ribbon sensor,Machinery sensor | SDRAM | 32MB | |
| Optional kit sensor |
Label peel-off sensor | FLASH | 8 MB | |
| Emulation | Software | |||
| Zebra | ZPL,EPL,TSPL | Driver(Windows 32bit/64bit), Bartender,SDK system | ||
| Reliability | Graphics | |||
| TPH life time | 150km (Condition: use specific thermal roll paper and the print rateis 12%) |
Graphicsprocessing | Graphics (Monochrome PCX, BMP) can be downloadedinto SDRAM. | |
| Fonts | Media Handling | |||
| Code Pages | EPL: PC437;PC850;PC852;PC860;PC863;PC865;PC857;PC861 ;PC862;PC855;PC866;PC737;PC851;PC869;Windows 1252;Windows1250;Windows1251;Windows 1253;Windows 1254;Windows 1255 ZPL: PC850, windows 1250, windows 1252, windows 1251,windows 1253, windows 1254, windows 1256 |
Media Spec. | Thickness 0.06~0.25mm Width 19.6mm~120mm Length 8.9~400mm Max. OD φ203mm(8 in) ID φ25.4mm~76.2mm(1 inch~3 inch) | |
| Alphanumeric | Resident single byte(ZPL): Font A, Font B, Font D, Font E,Fon t F, Font G, Font H, Fon t V0, Font GS, Font P, Font Q,Font R, Font S, Font T, Font U, Font V | Media cut | Tear bar, auto-cutter, peeler | |
| User-defined | User-defined fonts can be downloaded into FLASH,SDRAM. | Media type | Roll paper, fanfold paper (continuous, non-continuous, continuous tag, wrist-band,normal media and all sorts of receipts) |
|
| Chinese | GB18030 24×24(Simplified/Traditional Chinese) | |||
| Scalable/Rotation | Zoom in 1~8 times in vertical or horizontal, rotate by 0°,90°,180°,270°. | |||
| Certification | Optional kit | |||
| CE,FCC | Cutter, Peeler | |||
| Power Supply | Ribbon | |||
| External power adapter | OD | Max.φ70mm(2.7 in) | ||
| Input | AC 100V-240V,50-60Hz | ID | φ25mm(1 in) | |
| Output | DC 24V: 1.5A | Length | Max. 360m | |
| Width | 25.4~114mm | |||
