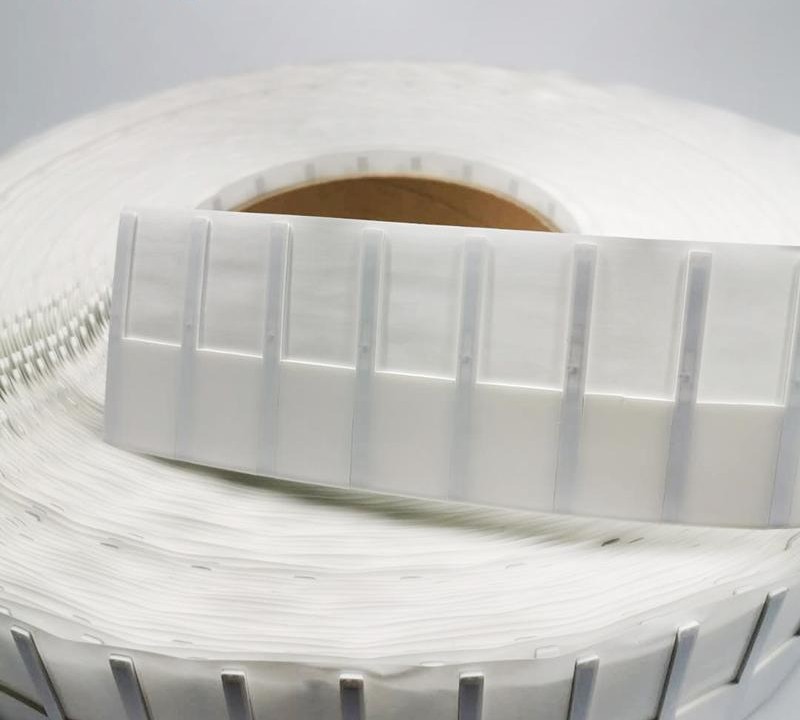

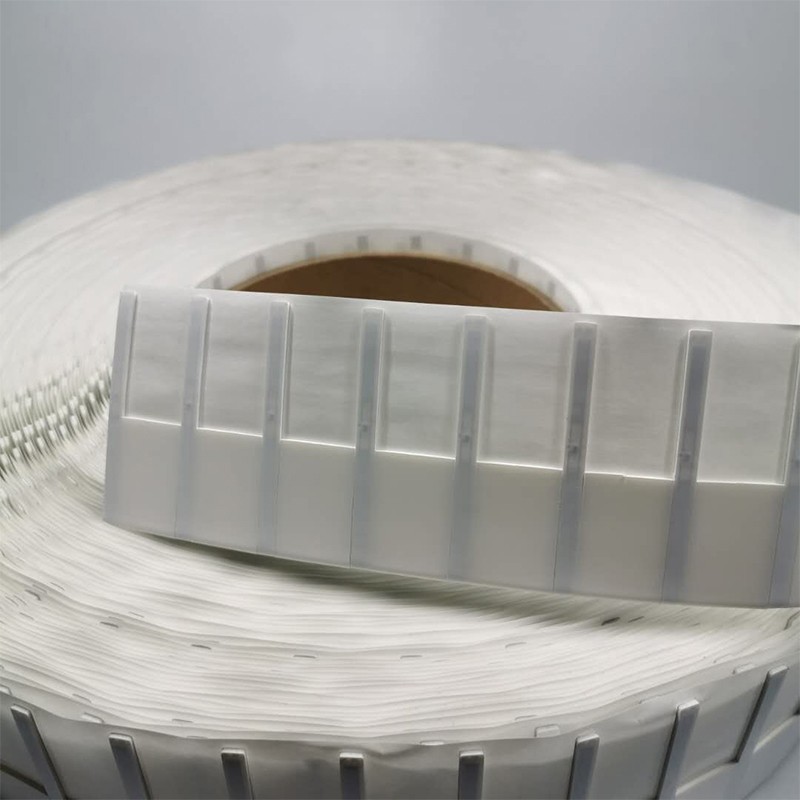

JT-K6505 65*5*1.26mm 860-960Mhz UHF Flexible Printable On metal RFID Label
|
Protocol |
EPC Class 1 Gen 2 (ISO 18000-6C) |
Dimensions(mm) |
65(+/- 1) x5(+/- 0.8) x1.26(+/- 0.1)mm |
|
Working frequency |
860-960MHz |
Print Performance |
Excellent |
|
Chip |
NXP Ucode 8 |
Read Range |
0-2m by JT-973 handheld reader on metal |
|
Memory |
0-bit User |
Surface Material |
White PET |
|
48-bitsTID |
Adhesive |
High strength adhesive |
|
|
128-bits EPC |
Standard Packing |
500pcs/roll |
|
|
Storage Temp |
-40°F to +185°F (-40°C to + 85°C) |
I.D. |
3 in (76.2 mm) |
|
Working Temp |
-40°F to +185°F (-40°C to + 85°C) |
O.D. |
8 in (203 mm) |
|
Weight(roll) |
0.71 kg (500 pcs) |
Printer |
Zebra RZ400/R110Xi4, SATO CL4NX,Toshiba SX-5 |
| Model | Size | Chip | Memory |
| JT-K4025 | 40*25*1mm | Impinj Monza R6-P | 32-bit User, 48-bit TID, 128-bit EPC |
| JT-K5015 | 50*15*1.26mm | NXP Ucode 8 | 128-bit EPC,48-bit TID,0-bit User |
| JT-K6025 | 60*25*1.26mm | Impinj Monza R6 | 0-bit User, 48-bit TID, 96-bit EPC |
| JT-K8025 | 80*25*1.26mm | Impinj Monza R6-P | 32-bit User, 48-bit TID, 128-bit EPC |
| JT-K6505 | 65*5*1.26mm | NXP Ucode 8 | 128-bit EPC,48-bit TID,0-bit User |
| JT-K2020(tamper-proof) |
20*20*1mm | Impinj Monza R6-P | 32-bit User, 48-bit TID, 128-bit EPC |
| JT-K7025(tamper-proof) |
70*25*1.26mm | Impinj Monza R6-P | 32-bit User, 48-bit TID, 128-bit EPC |
