Protocol :
ISO11784/85/EMID/FDX-BWorking frequency :
134.2KHz;125KHz

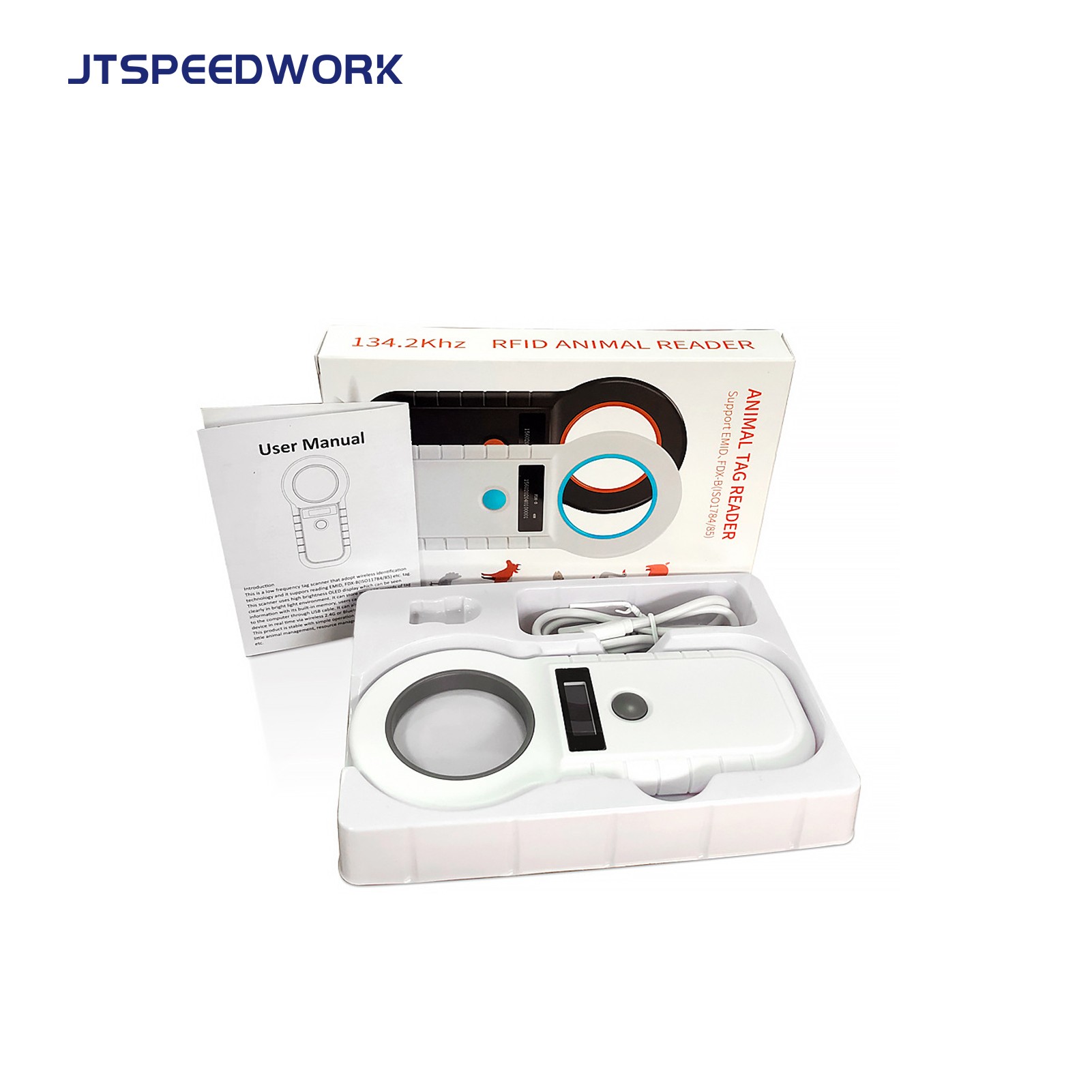

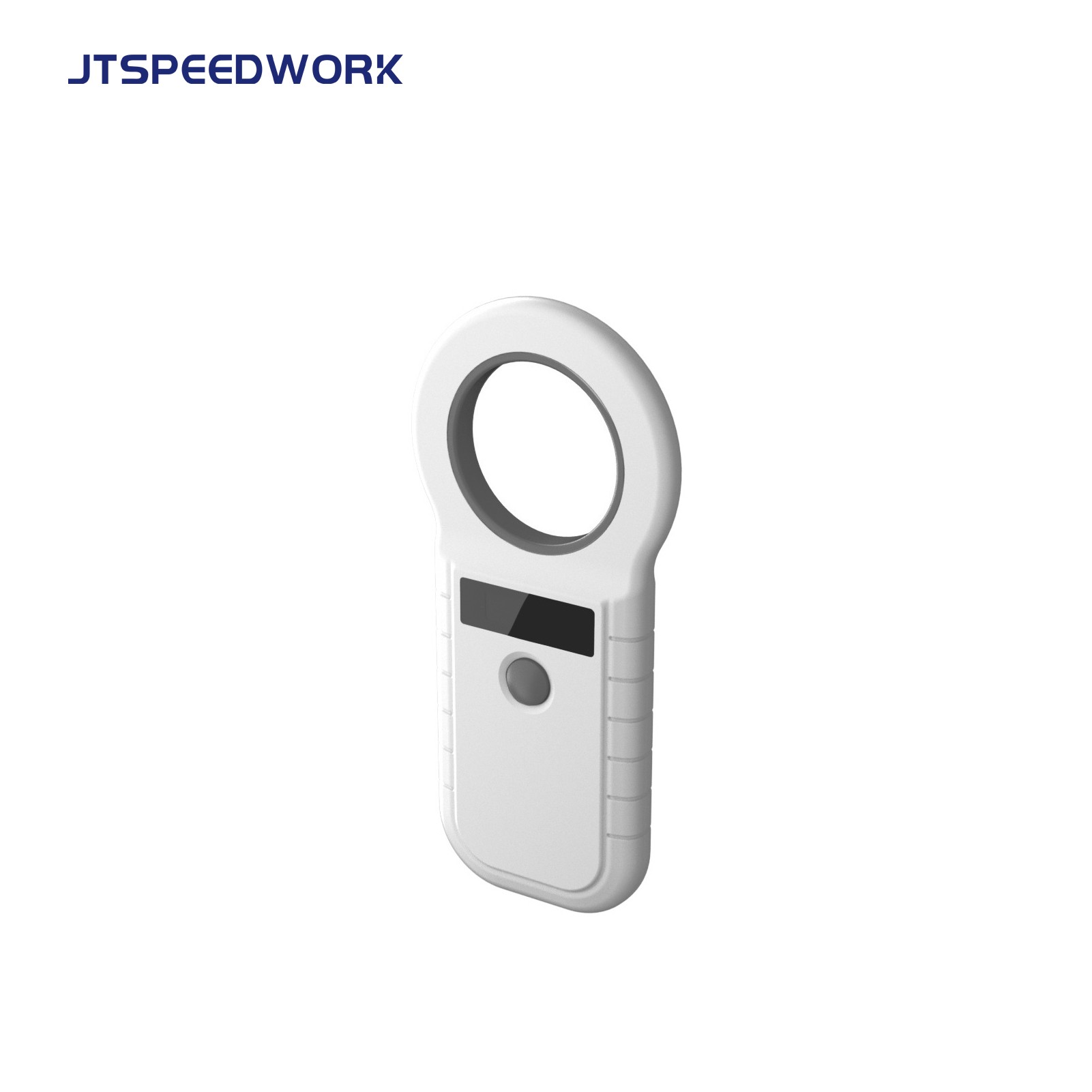

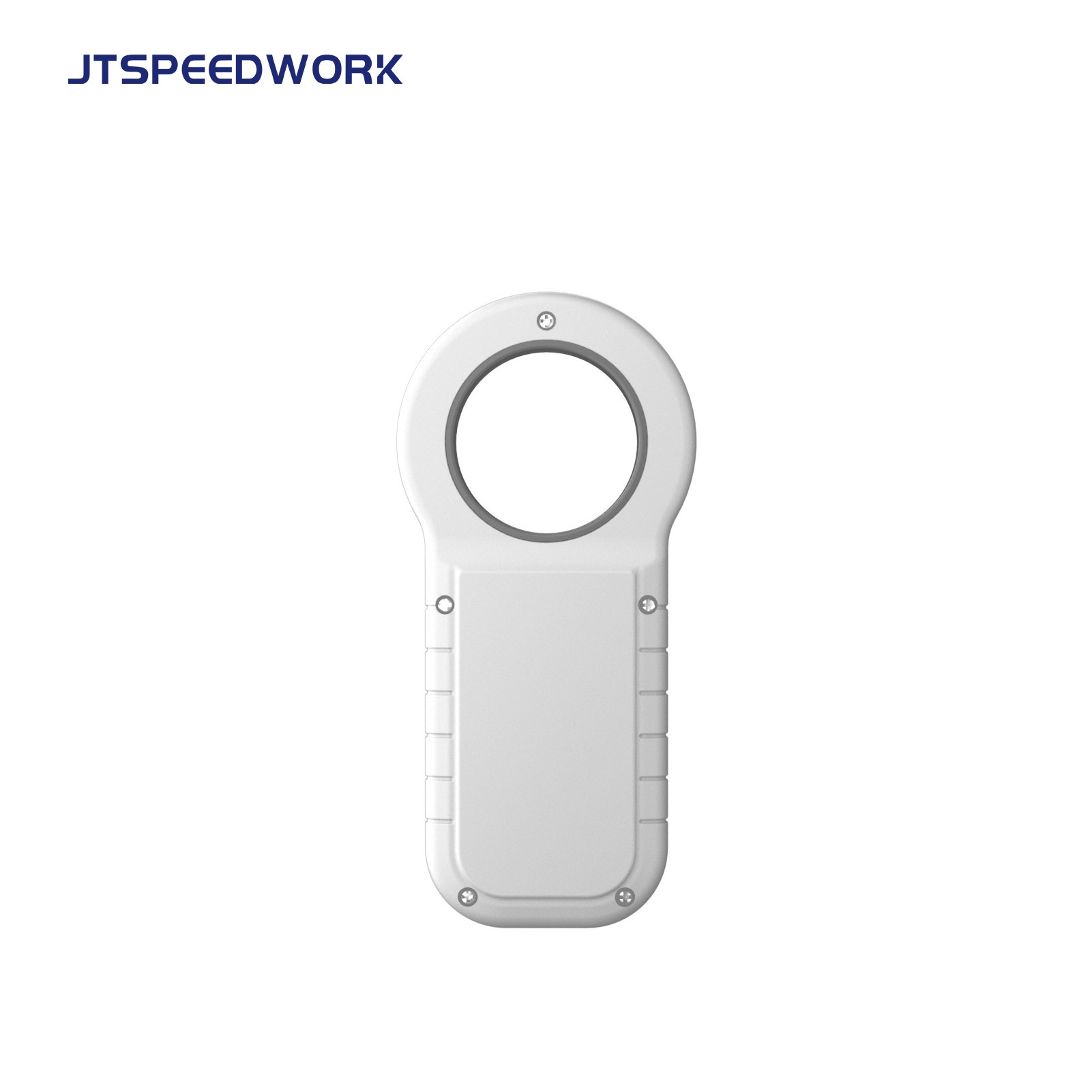

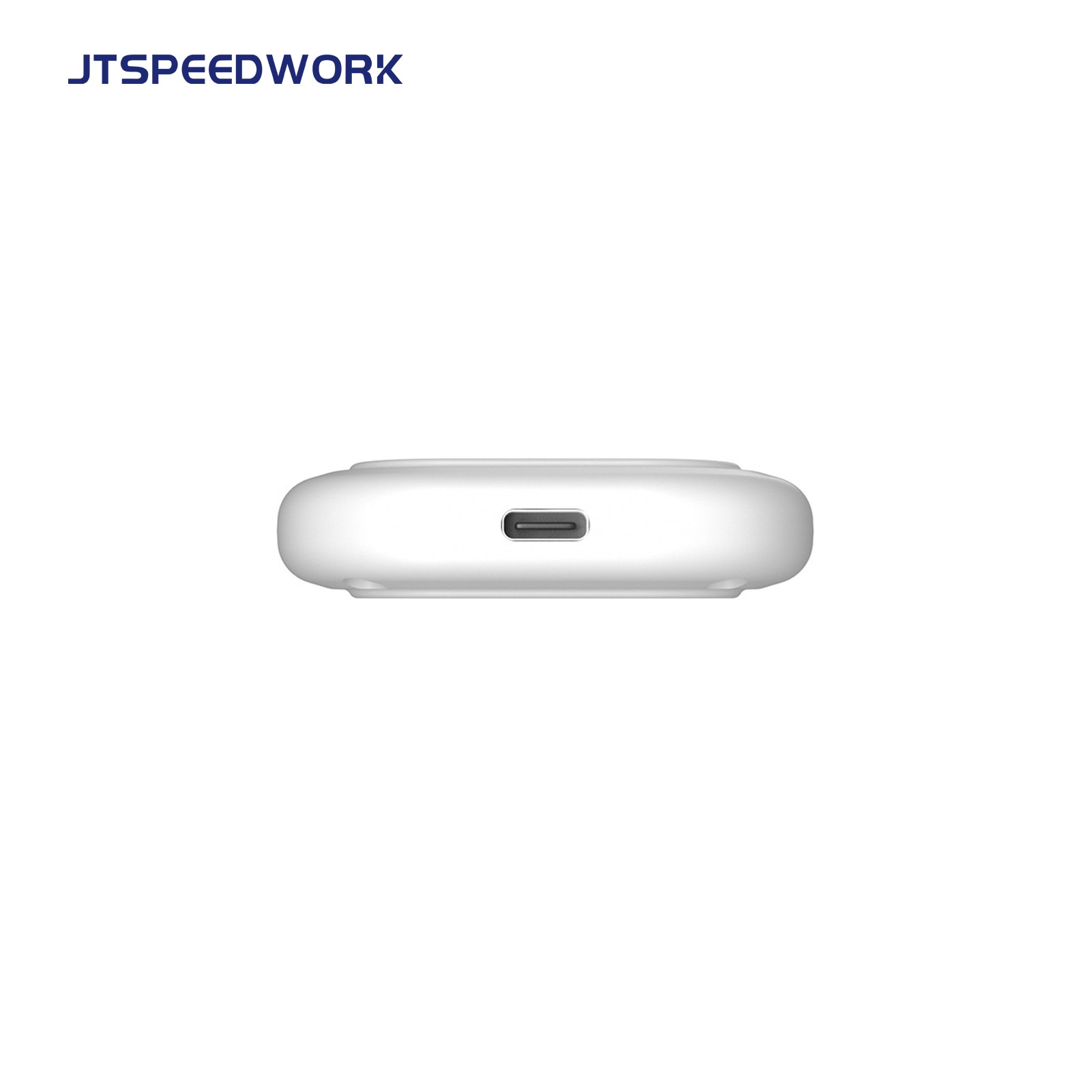

JT-H02 animal chip handheld reader is used in the field of animal identification and can identify animal chips that meet the ISO11784/85 standard. The product uses advanced radio frequency transmitting/receiving circuits and embedded microcontrollers, combined with strict decoding algorithms to receive, verify and read the data of IS011784/85 compatible electronic signs. It has the characteristics of high receiving sensitivity, small operating current, easy to carry, and high cost performance. Data is displayed on the LCD screen in real time. This product is a low-frequency 134.2KHz and 125KHz dual-frequency reader, OLED display, USB charging, product performance is stable, safe and reliable.
| Item No. | JT-H02 | |||
| Physical Parameters | Power supply | |||
| Color | White/Black | Charging voltage | 5V | |
| Dimensions | 167(L)*116(W)*27(H)mm | Battery voltage | 7.4V | |
| Net weight | 71g |
USB 2.0;Built-in rechargeable battery Please charge it for 2 hours for first time use |
||
| Material | ABS | Continuously working | ||
| 4 hours | ||||
| RFID parameters | Buzzer | |||
| Air Protocol | Built-in | |||
| EMID,ISO11784/85 protocol, FDX-B | Data Storage | |||
| Working frequency | Can store 128 pieces of data | |||
| 134.2KHz;125KHz | User Environment | |||
| Reading range | Operating Temp. | -20 ℃ to 65 ℃ | ||
| 0-30cm(relate to animal chip size) | Storage Temp. | -30 ℃ to 70℃ | ||
| Screen display | Humidity | 5-90% non-condensing (+25° C ) | ||
| 0.9-inch OLED display | ||||
