Description:

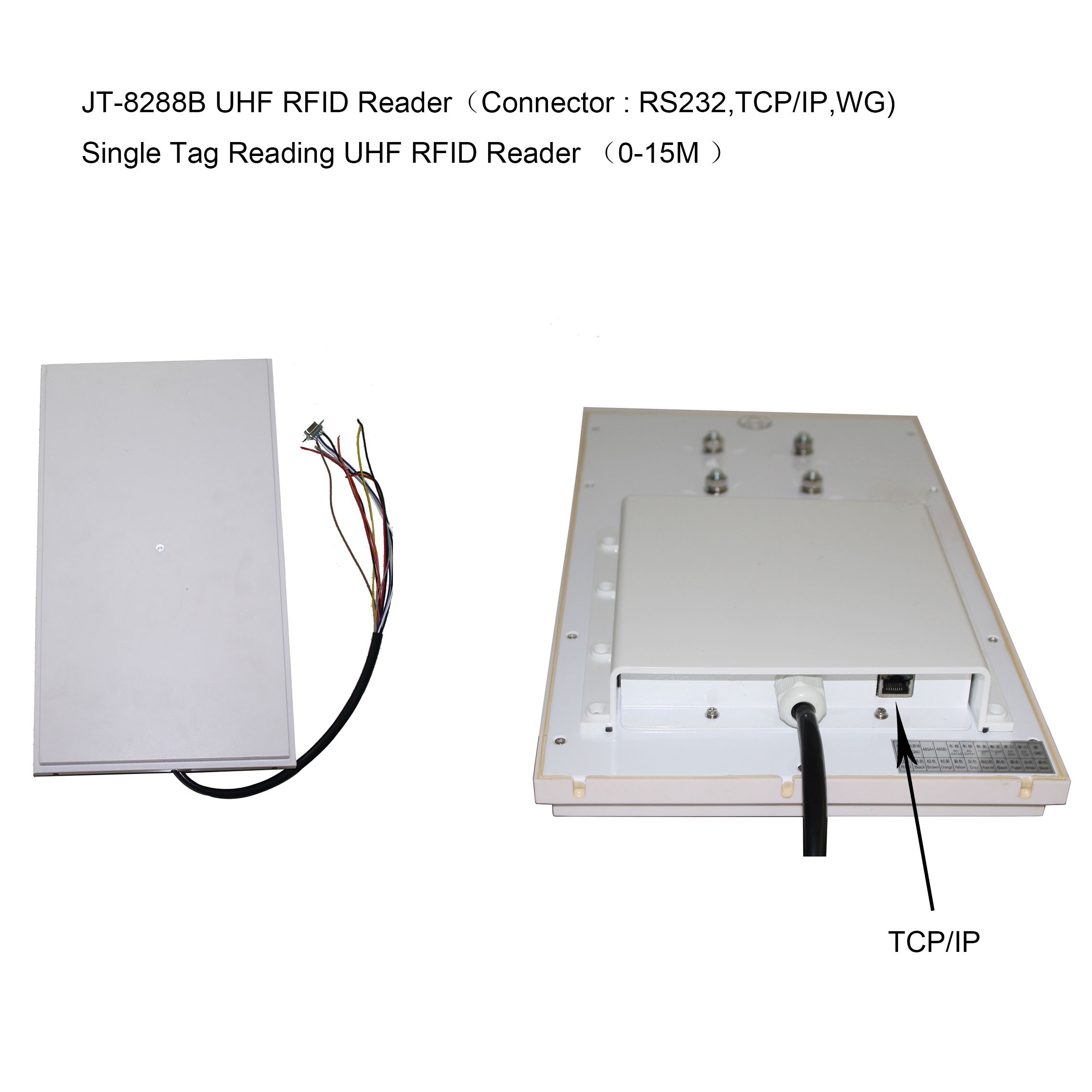

RFID middle range reader JT-8288B could be applied in various harsh working environment for multiple protocol compatible and reading fast. Full support the tag of ISO-18000-6C or ISO-18000-6B. Its stable reading distance is 15m(related to the tag and environment), it has a beautiful shape.
Feature:
◆A shape of linear, the LED will light when read a tag
◆Could used in some very cold area, such as northeast and northwest, because its ability of lighting-resisting and lower temperature protection.
◆The output power is 30dbm,Support multi work modes (auto, command, triggering)
◆ Applied in various application: vehicle and entrance guard, electronic free collection, logistic management and production automatic.
Specification:
|
Item No. |
|
|
JT-8288B |
RS232,TCP/IP,Wiegand |
|
JT-8288A |
RS232,RS485,Wiegand |
|
JT-8288W |
RS232,WIFI,Wiegand |
|
JT-8288G |
RS232,GPRS,Wiegand |
|
Performance parameters |
|
|
Working Frequency |
902~928 MHz or 865~868MHz |
|
Protocol |
ISO18000-6C(EPC C1 GEN2) |
|
RF power |
0～30dBm(Adjustable) |
|
Software & SDK |
DEMO and C#, VC, VB, Java, DELPH, etc., |
|
Encryption |
Can be directly encrypted, copy prevention. |
|
Reading range |
stable reading range 12~15M(Depends on tag & environment) |
|
Industrial lightning protection |
6000V |
|
Low temperature protection |
Northeast, Northwest extremely cold region, low temperature protection |
|
Frequency modulation |
hopping or fixed frequency |
|
Input/output port |
Two-way relay output(customized), one-way trigger input |
|
Antenna gain |
10dBi polarization |
|
Working way |
Buzzer & LED |
|
Power |
12V/3A Adaptor |
|
Physical parameters: |
|
|
Item size |
420x240x50mm |
|
Package size |
600x310x110mm |
|
Net weight |
4KG |
|
Shell material |
ABS |
|
Working temperature |
-20℃~+65℃ |
|
Storage temperature |
-45℃~+95℃ |

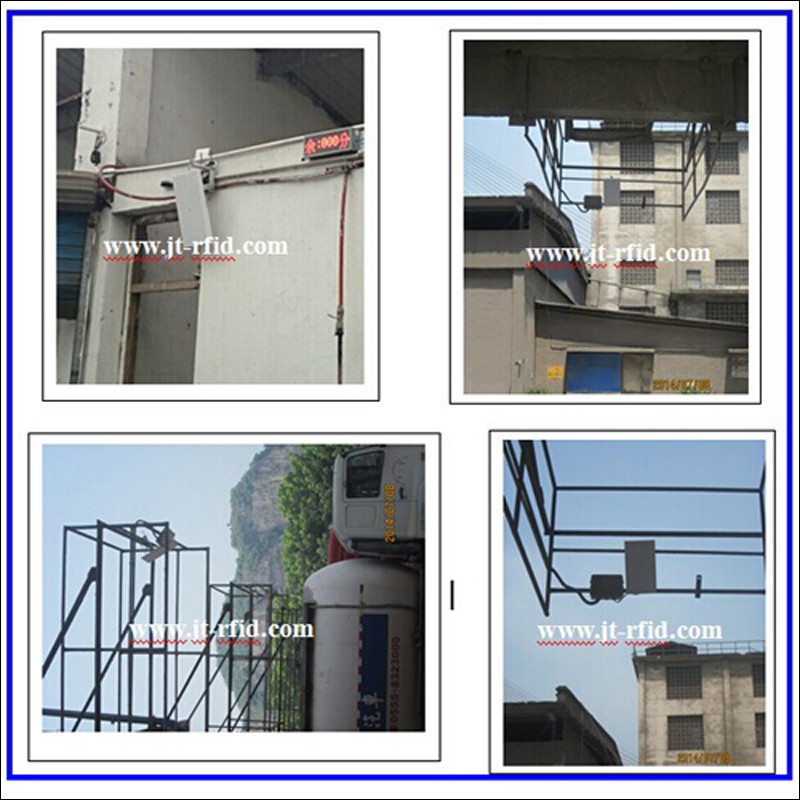

Mainly application as follows:
1. Parking management: Long range intelligent parking management and automatic charge without stop the car
2. Production line management: Goods identification for production flow
3. Auto Access control: Long range access control management for custom, sea port
4. Logistics and warehouse management
5. People auto registry for important meeting or exhibition
6. Automatic weighing and data capture.
