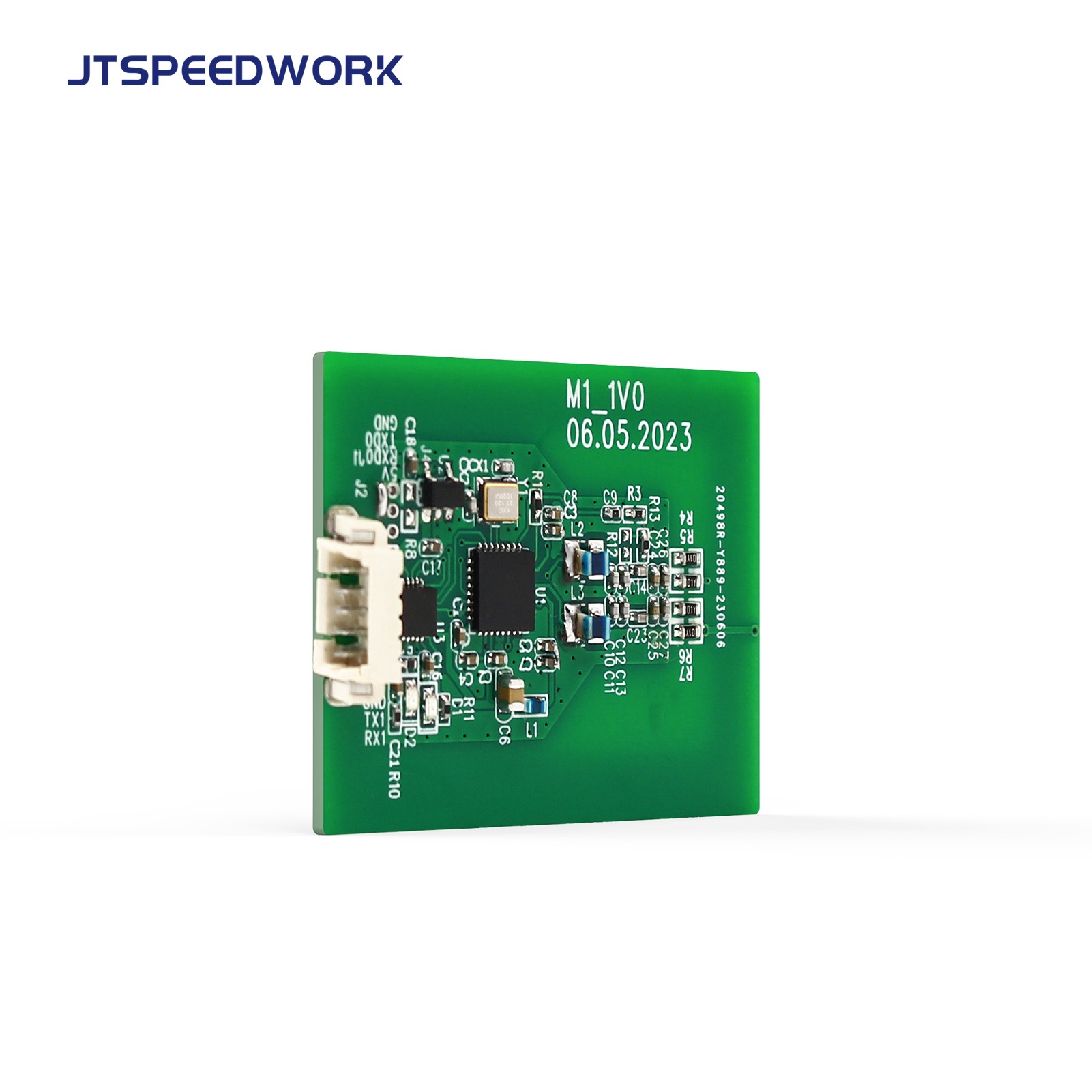

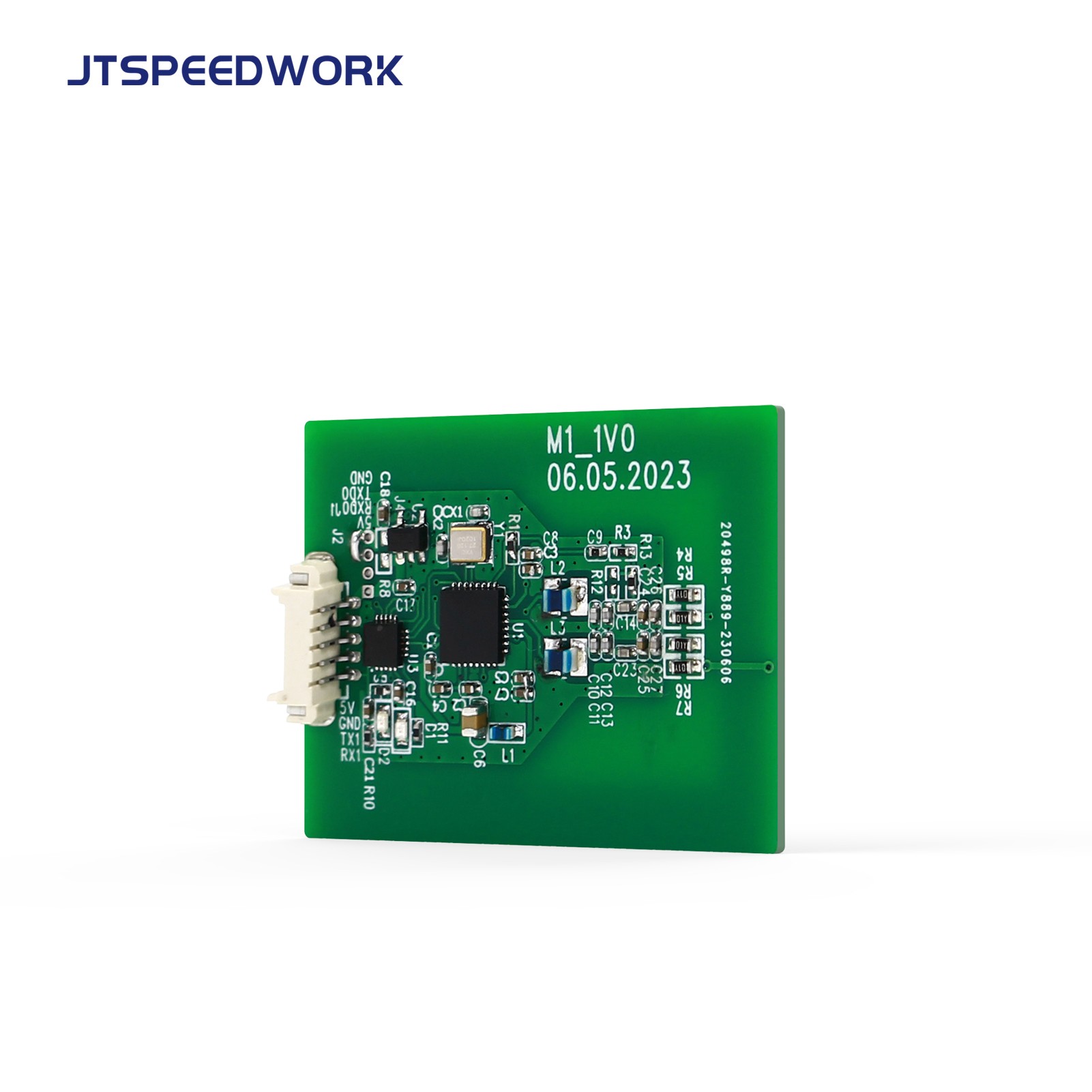

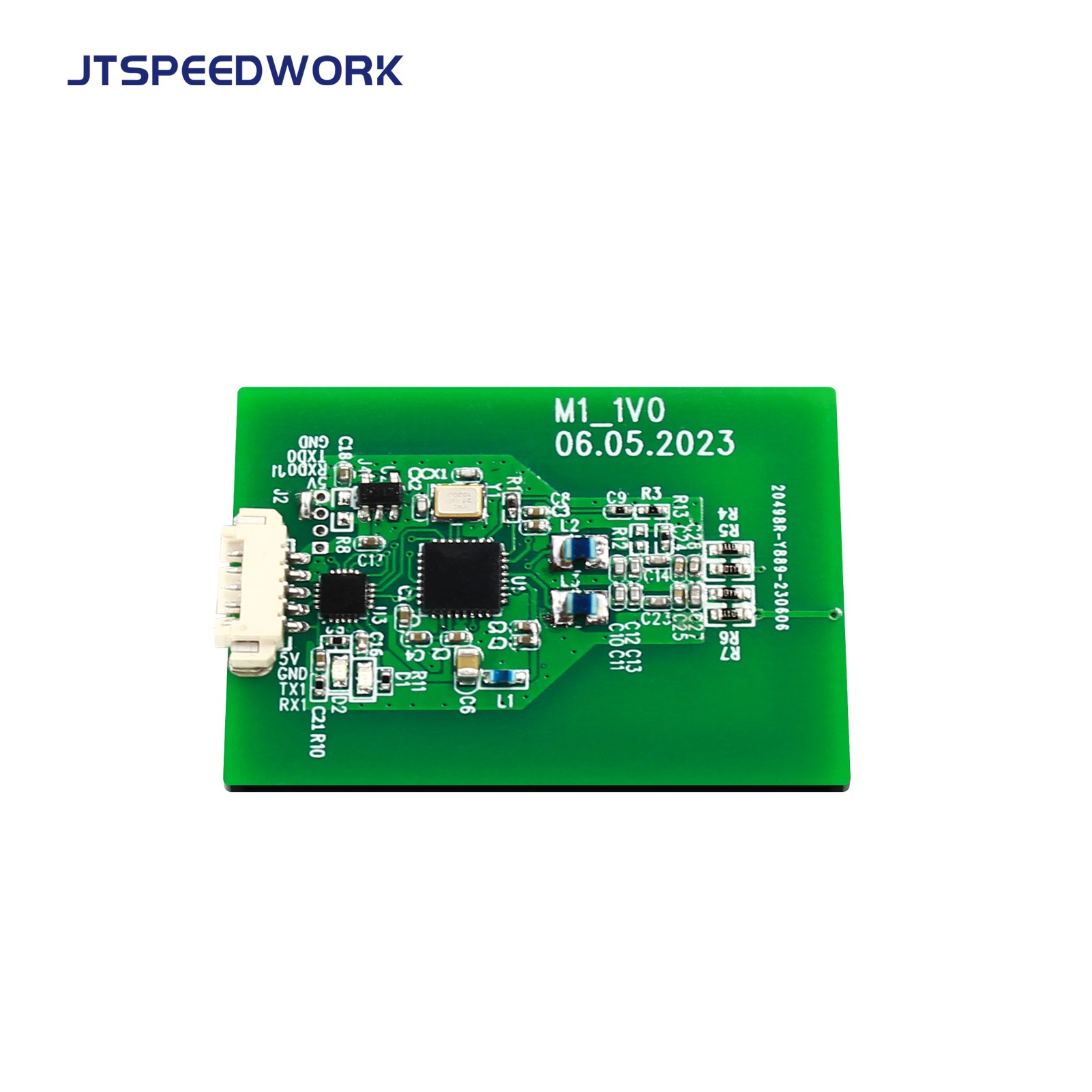

JT-2302 HF RFID 13.56MHz Module ISO14443A ISO15693 Support Mifare1 IC card
JT-2302
HF RFID Module
| Item No. | JT-2302 | |||
| Power Supply | User Environment | |||
| Operate voltage | DC 5V | Operating Temp. | -20 ℃ to 60 ℃ | |
| Working current | 100mA | Storage Temp. | -30 ℃ to 70℃ | |
| Stand-by current | 40mA | Humidity | 5-90% non-condensing (+25° C ) | |
| RFID parameters | Physical parameters | |||
| Frequency | Dimensions | 40(L)*30(W)mm | ||
| 13.56MHz | Net weight | Around 12g | ||
| Protocol | ||||
| ISO 14443A, ISO 15693 | Interface | |||
| Reading distance | 5V | Module 5V power input | ||
| 0-3cm (relate to tag and enviroment) | TX1 | Module serial port TX output (3.3V TTL level) | ||
| Communication interface | RX1 | Module serial port RX input (3.3V TTL level) | ||
| UART 3.3V TTL signal interface | GND | Module GND | ||
| RS32 baud rate | ||||
| 115200 bps noparity,8 data bits,1 stop bit | Datasheet (download link) | |||
