PERFSORMANCE PARAMETERS |
|
|
Working Frequency |
902-928Mhz or 865-868Mhz |
|
Dimension |
245x24MM |
|
Protocol |
ISO 18000-6C(GEN 2) |
|
Chip |
Aline H3 or Custmized |
|
Storage Capacity |
EPC 96 bits, User memory 512bits |
|
Working temperature |
-40℃ ~ 70℃ |
|
Material |
ABS+metal |
| Reading Range |
20meter (with JT-8290 long range UHF RFID Reader , 5-8m(with JT-8280 Middle Range RFID Reader |
| Life |
100,000 times, 10 years |
| Install way |

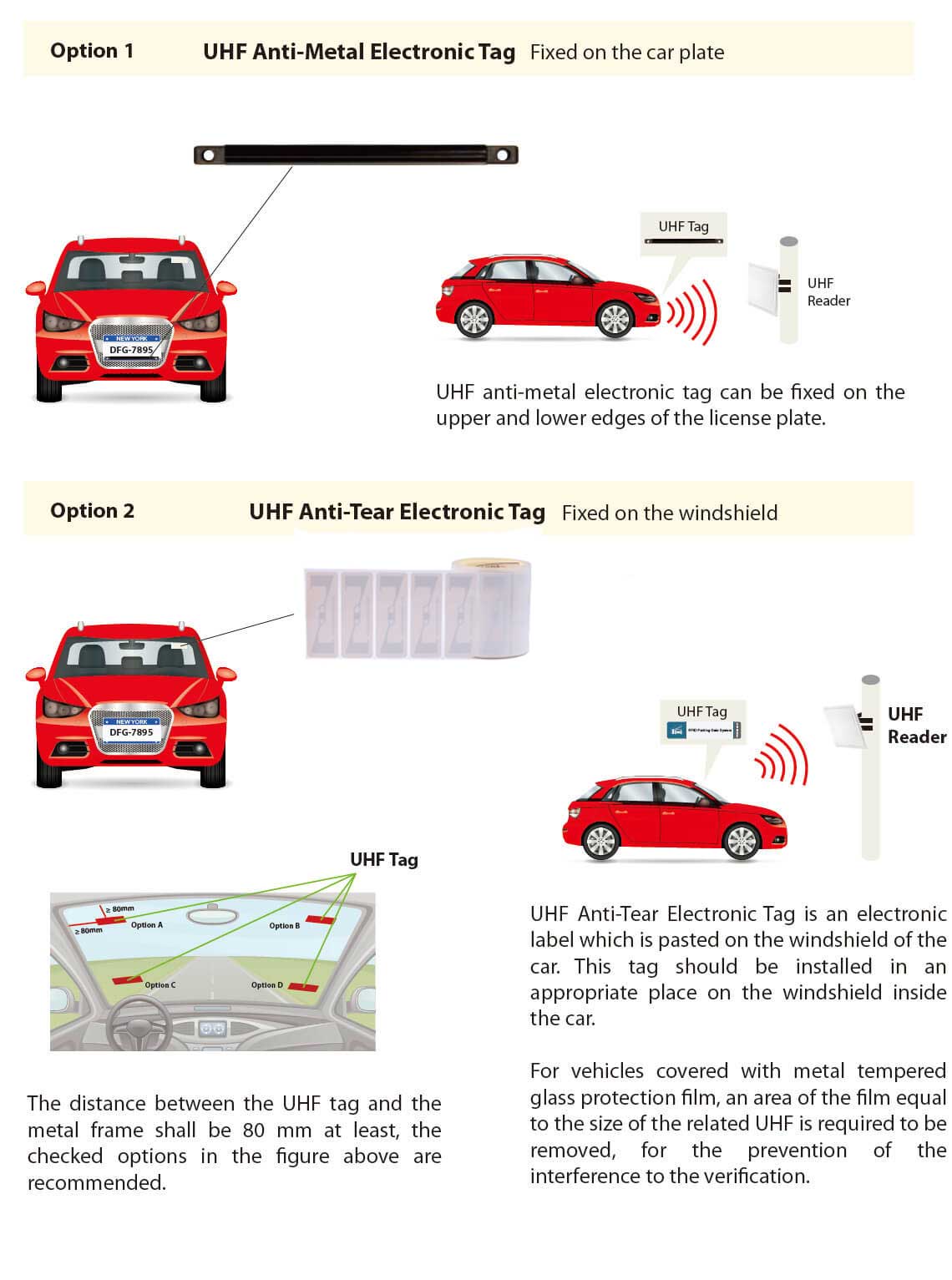

The RFID label is encapsulated in engineering plastics and welded by ultrasonic wave. When used, double-sided glue, glass glue or screw can be directly mounted on the surface of the object, and the performance of the metal surface is the best.. Its main application is non-stop toll collection, vehicle management and urban intelligent transportation and other smart fields. |
| Application |
Electronic License plate tag |
