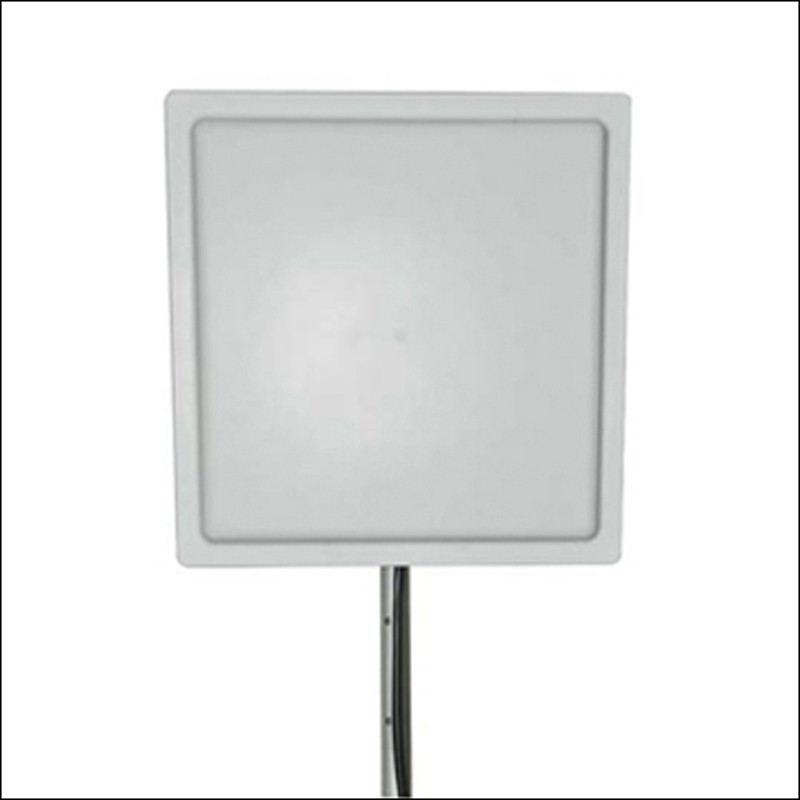

UHF RFID Long Range reader JT-8290 could be applied in various harsh working environment for multiple protocols compatible and high speed reading.
Full support the tags of ISO-18000-6C (EPC C1 GEN2) or ISO-18000-6C.Its stable reading distance is 25m (Depends on tag and environment).
Feature

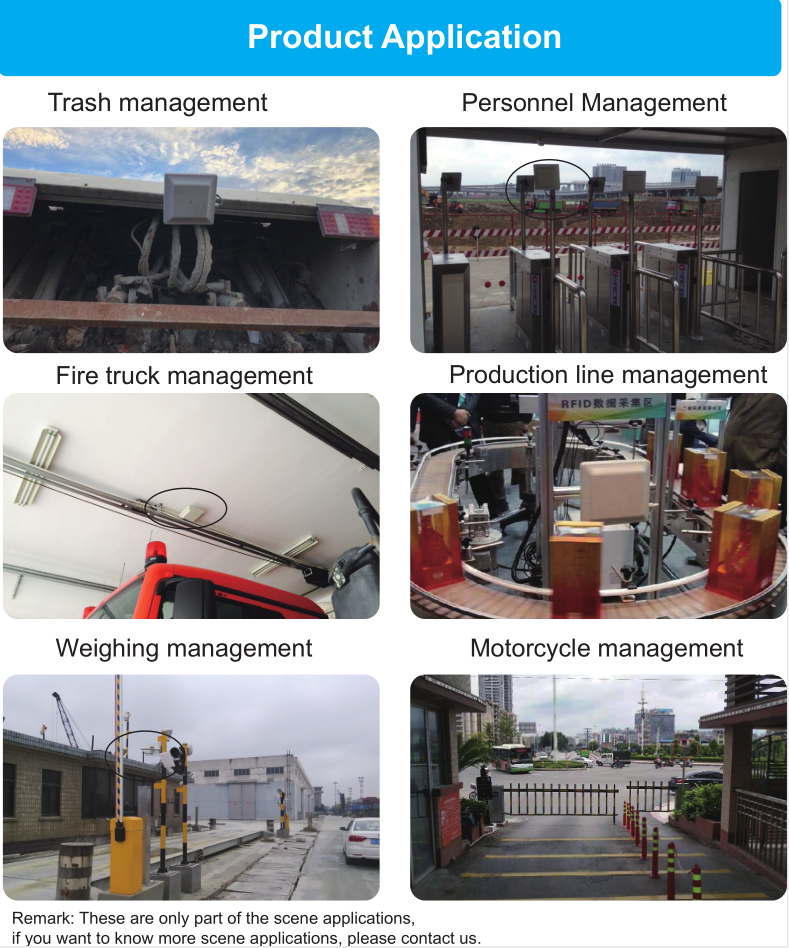

Application
|
Item No. |
|
|
JT-8290W |
RS232,WIFI,Wiegand |
|
JT-8290B |
RS232,TCP/IP,Wiegand |
|
JT-8290A |
RS232,RS485,Wiegand |
|
JT-8290G |
RS232,GPRS,Wiegand |
|
Performance Parameters |
|
|
Working Frequency |
902~928 MHz or 865~868MHz |
|
Protocol |
ISO18000-6C(EPC C1 GEN2) |
|
RF power |
0~30dBm(Adjustable) |
|
Software & SDK |
DEMO and C#, VC, VB, Java, DELPH, etc., |
|
Encryption |
Can be directly encrypted, copy prevention. |
|
Reading range |
stable reading range 25M(Depends on tag & environment) |
|
Industrial lightning protection |
6000V |
|
Low temperature protection |
Northeast, Northwest extremely cold region, low temperature protection |
|
Frequency modulation |
hopping or fixed frequency |
|
Input/output port |
Two-way relay output(customized), one-way trigger input |
|
Antenna gain |
12dBi polarization |
|
Working way |
Buzzer |
|
Power |
12V/3A Adaptor |
|
Physical Parameters |
|
|
Item size |
450x450x50mm |
|
Package size |
600x480x110mm |
|
Net weight |
5KG |
|
Shell material |
ABS |
|
Working temperature |
-20℃~+65℃ |
|
Storage temperature |
-45℃~+95℃ |
